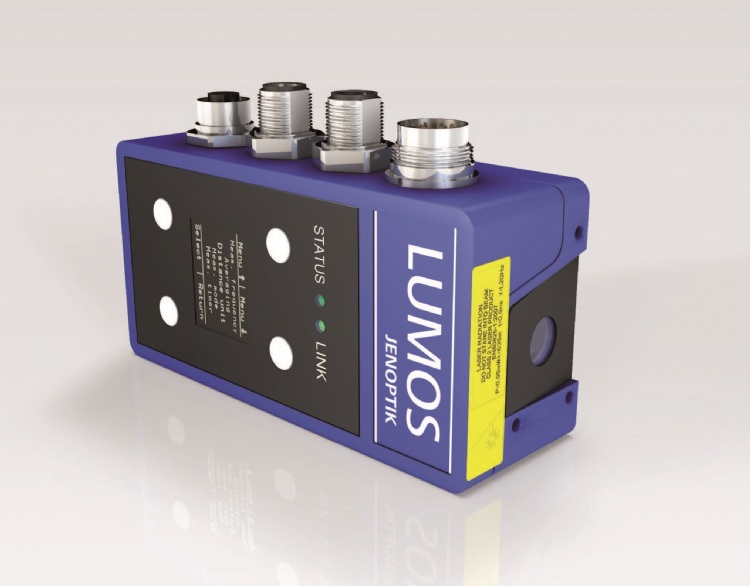

JENOPTIK LUMOS/ Laser Distance Measurement
Model: JENOPTIK LUMOS
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
Description and Features
The LUMOS laser distance meters are specialized
for distance measurement on hot surfaces, e.g. red hot, glowing steel, and for outdoor use in bright lighting con-ditions with high constant or stray light levels.
Suitable measurement targets can be almost all natural surfaces, liquids, or reflectors.
Within a range of 500 meter LUMOS laser sensorsprovide a maximum measurement accuracy of 1 mmand a measurement frequency of up to 100 Hz.
For convenient data display and parameterization LUMOS sensors are equipped with an OLED display and touch-keys. Due to their standard interfaces, LUMOS sensors are optimized for easy system integration into industrial auto-mation engineering solutions.
Benefits
Distance measurement on hot surfaces
Outdoor measurement in bright lighting conditions
Broad measuring range & millimeter accuracy
Visible measuring beam (red)
Industrial standard interfaces
Digital & analog data output, trigger functionality
Device control via OLED display and touch-keys
Applications
Non-contact distance measurement & - tracking
Steel working industry & rolling mills
Positioning: transportation, handling & conveying systems
Measurement of filling levels, object thickness & length
Industrial automation and process control
Specifications
