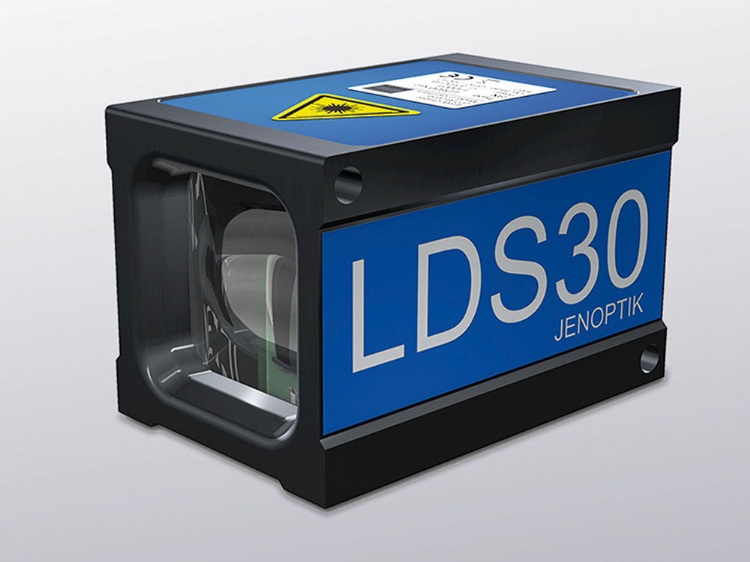

JENOPTIK LUMOS/ Laser Distance Speed Measurement Sensor
Model: JENOPTIK LDS30
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
The LDS30 laser distance sensor is dedicated for general
ranging applications that require instantly triggered and
fast data acquisition. The sensor provides measurement
rates as fast as 30 kHz within a total measurement range
of up to 250 m with an absolute measurement accuracy
in the centimeter range. It operates fully eyesafe at a
wavelength of 905 nm.
The LDS30 sensor is optimized for easy system integration.
It is fitted into a ready-to-use IP67 proof housing.
The LDS30 is shockproof and suitable for applications
that impose high impact on the sensor, for example in
industrial environments.
Benefits
• Compact, lightweight design
• High repetition rate
• Long measuring range
• Eyesafe operation
• IP67 proof housing
• Industrial standard interfaces
• Digital and analog output
• Easy system integration
Applications
• Distance measurement & object detection
• Proximity sensing & warning
• 2D and 3D scanning applications
• Industrial automation
Specifications
