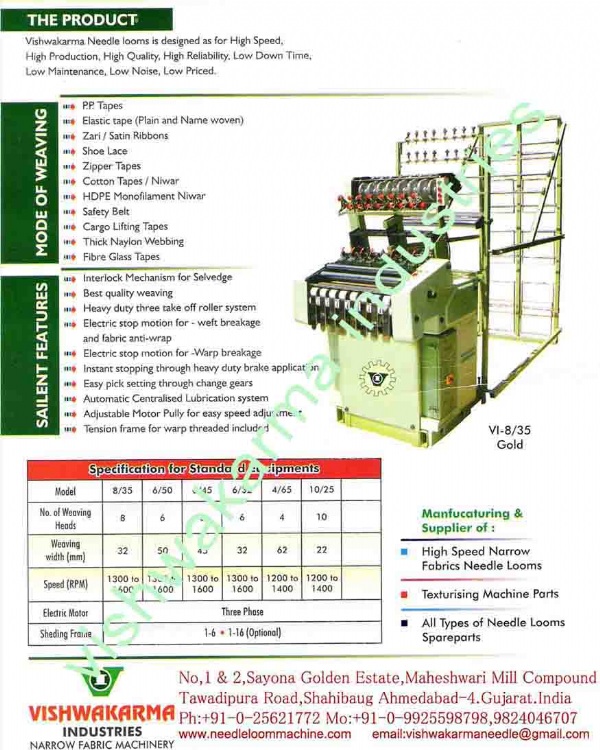

Niwar Tape Needle Loom Machine
Model: ViGold6/65
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Jacquard Needle Looms
Characteristics
Our machines are sturdy and balanced design structure. The machines are supplied in different models. Fabric width wise from 5 mm to 175 mm and nos. of tape 2 to 20 nos. according to width of fabric. Max. Healed frame are 16 nos. which is enough for general weaves used in elastic as well as rigid tapes. That gives sufficient space for smooth working. All general features like electro magnetic brake, auto stop motion for warp and weft, lock thread weaving systems are provided in our all models. Our standard supply includes system for warp supply through beams.
Our full effort, devoted for customers' satisfaction, starts from their exact need up to commissioning of the machines. We ensure prompt after sales service and understand customers' production program. We are always on a pace of modernization & improvement of our products, based on field feedback, customers' suggestions, requirements and constant effort on R&D.
Specifications
Specifications
Needle loom machine
Reed width: 3mm-150mm
No of tapes: 2-12
Speed: 800-1300rpm
Power: 3 Phase 1 hp Elec. motor
No. Of Shafts - 10
Centralized lubricating Pump
Auto-stop motion in Warp, Weft, Tape Back
Shedding lever & Nip Roller
Max. Speed: 600 to 1500 rpm.
Back Frame.
Can make the tape from min.3 mm width to 150mm width.
