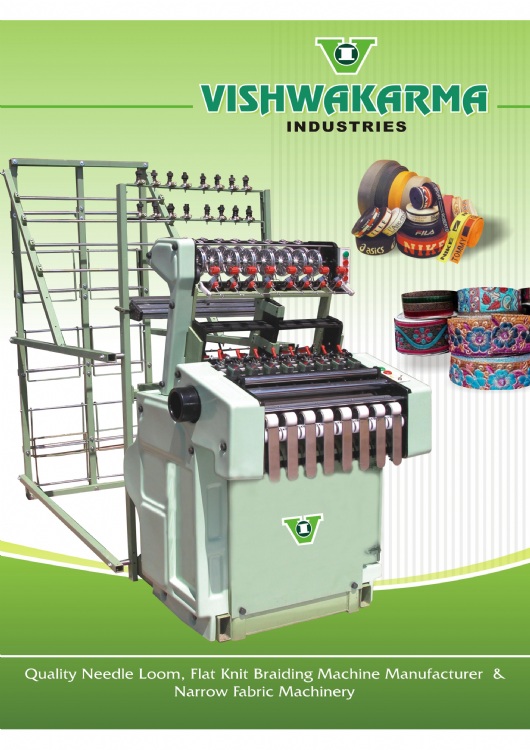

Twill Tape Making Needle Loom Machine
Model: ViGold8/35
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Label Making Machines
Characteristics
1. Machine is specially designed for heavy duty belts & Webbings.
2. Four stage heavy knurled take off rollers to prevent from slippage even
At heavy tension.
3. Sturdy and balanced design gives smooth & noise less working.
4. Machine runs continuously without stoppages, hence wastage is negligible.
5. Auto stop motion for any yarn breakages in weft and catch threads.
6. Electromagnetic brake for instant stop.
7. Easy weaving setting.
8. Shedding shaft 16 set with heild frames.
9. Automatic centralized lubrication systems.
Specifications
1. Models VI 8/35 VI Gold 8/45 VI Gold 10/35
2. Nos. of tapes (Heads) 8 8 10
3. Max. Reed width in mm 32 40 32
4. Max. Nos. of Heald frames 12 12 12
5. Shedding motion by Chain Chain Chain
6. Pick repeats 8 8 8
7. Machine RPM 960-1400 960-1400 960-1200
8. Elect. Motor (A.C. 3 PH.) 1 H.P 1 H. P. 1.5 H. P
