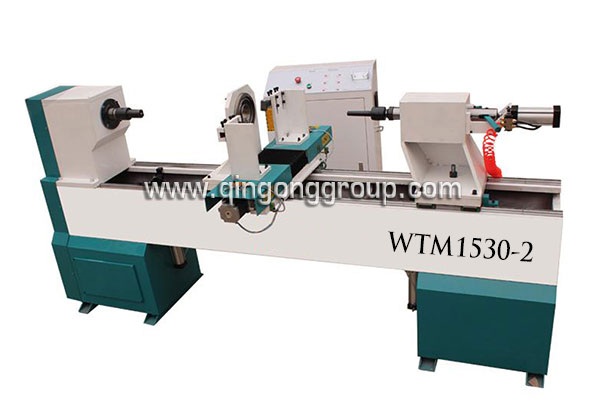

CNC Wood Turning Lathe Machine for Banister Pillars WTM1530-2
Model: WTM1530-2
Category: Woodworking Machinery Industry / Wood Turning Machinery / Wood Lathe
Characteristics
CNC wood turning lathe machine is designed for cylindrical or conoid work pieces, milling for circular staircase stingers, for example pillar, banister, chair legs, staircases, stairway balusters, stairway newel posts; dining table legs; end table legs; sofa table legs; bar stool legs; chair legs; chair arm posts; chair stretchers; bed rails; lamp posts; baseball bats and so on.
Specifications
CNC Wood Turning Lathe Machine for Banister Pillars
Model: WTM1530-2
Model
|
WTM1530-2
|
Max turning length
|
100mm-1500mm
|
Max turning diameter
|
20mm-300mm
|
Number of axis
|
single axis, single/double blade
|
Maximum feed rate
|
200cm/min
|
Minimum setting unit
|
0.01cm
|
Turning motor power
|
3.0kw
|
Software
|
ArtCAM, ArtCE
|
Power supply
|
AC380V/50Hz
|
Overall dimensions
|
310*110*170cm
|
Weight
|
1600kgs
|
We can make the CNC machines as per your needs, welcome your inquiry.
Model
|
WTM1530-2
|
Max turning length
|
100mm-1500mm
|
Max turning diameter
|
20mm-300mm
|
Number of axis
|
single axis, single/double blade
|
Maximum feed rate
|
200cm/min
|
Minimum setting unit
|
0.01cm
|
Turning motor power
|
3.0kw
|
Software
|
ArtCAM, ArtCE
|
Power supply
|
AC380V/50Hz
|
Overall dimensions
|
310*110*170cm
|
Weight
|
1600kgs
|
We can make the CNC machines as per your needs, welcome your inquiry.
