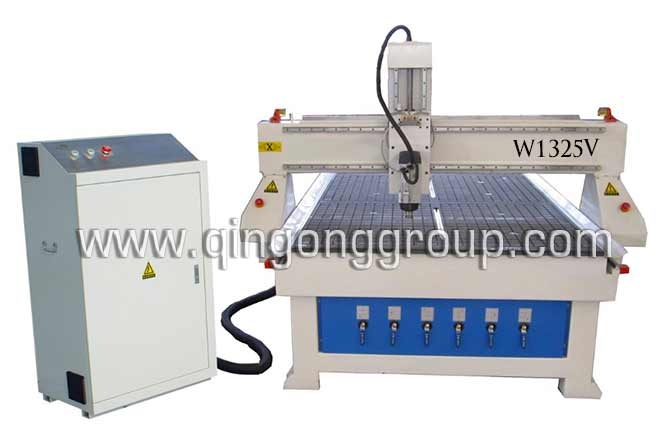

MDF Wood Cutting CNC Router Machine W1325V
Model: W1325V
Category: Woodworking Machinery Industry / Others / Other Woodworking Machines
Characteristics
This wood cutting cnc router machine with vacuum suction table, easy to hold workpiece like MDF board. 1300x2500mm work area for standard 4x8 feet MDF panel cutting.
Specifications
MDF Wood Cutting CNC Router Machine
Model: W1325V
This wood cutting cnc router machine with vacuum suction table, easy to hold workpiece like MDF board. 1300x2500mm work area for standard 4x8 feet MDF panel cutting.
Description |
Parameter |
X,Y Working Area |
1300*2500mm |
Z Working Area |
200mm |
Table Size |
1440*3040mm |
Resolution |
0.01mm |
Lathe Structure |
Seamless welded steel structure |
X,Y Structure |
Rack and pinion transmission, |
Z Structure |
Taiwan-made rolling ball-screw, |
Max. Idling Speed |
35m/min |
Spindle |
3.5KW |
Spindle Speed |
0-18000r/min, variable speed |
Inverter |
Fuling 3.7KW |
Working Voltage |
AC380V/50-60Hz, 3 phase |
Driver |
YAKO |
Working Mode |
Stepper |
Motor |
Stepper |
Command |
G code (HPGL,U00,mmg,plt) |
Operating System |
DSP |
Diameter of Cutter |
φ3.175-φ12.7 |
Cooling Mode |
Air-cooling |
Dust-collect Function |
Optional |
Work-Holding |
By vacuum suction |
Net Weight |
1300KG |
Software |
Type 3, ArtCAM, Wentai |
