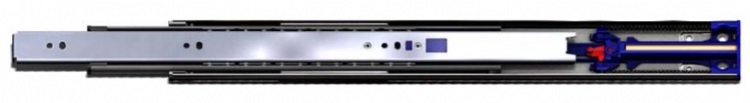

Medium Duty Soft Close Drawer Slides
Model: GS 4570-00 Medium Duty Soft-Close Slide Rails
Category: Machinery Parts and Components / Other Machinery / Other Machinery
Characteristics
Full Extension Three Members (16"-28") Soft Close Drawer Slide
Soft Closing damping stroke: 10"-14"=20mm, 16"-28"=55mm
SPCC Electro-Zinc Plated with Bright / Black
Size: 10"~28" (255~711mm)
Load Capacity: 45 kg / 22" (560mm)
Advantages:
Automatic low noise closing action Pre-assembled, ready to install.
The GS4570 is a soft closing side mount ball bearing drawer slide. Features include an oil filled soft closing cylinder with a 20/55mm stroke, non-handed disconnect release, and 100 lbs. load rating (45 Kg).
Drawings contained herein are for reference only and should not be used for product specification.
Specifications
Full Extension Three Members (16"-28") Soft Close Drawer Slide
Soft Closing damping stroke: 10"-14"=20mm, 16"-28"=55mm
SPCC Electro-Zinc Plated with Bright / Black
Size: 10"~ 28" (250~700mm)
Load Capacity: 45 kg / 22" (560mm)
Advantages:
Automatic low noise closing action Pre-assembled, ready to install.
The GS4570 is a soft closing side mount ball bearing drawer slide. Features include an oil filled soft closing cylinder with a 20/55mm stroke, non-handed disconnect release, and 100 lbs. load rating (45 Kg).
Drawings contained herein are for reference only and should not be used for product specification.
