Ball Bearing Server/Storage Slide Rail
Model: 4100-00 Ball Bearing Server/Storage Slide Rail
Category: Machinery Parts and Components / Other Machinery / Other Machinery
Characteristics
4100-00 Ball Bearing Server Slide Rail
Mounting: Side
Suitable Chassis: 438~440mm Width
Dynamic Load: 88 lbs (40 kg)
UL Static Load: 205 lbs (95 kg)
Height: 41mm (1.6")
Thickness: 7mm (Effective thickness: 5mm)
Finish: Zinc
Action: Telescopic Movement on precision steel ball bearing.
Features:
- Low Profile, Ultra Slim Width maximizes server chassis space.
- Universal Tool-Less Bracket for round or square holes.
- Ball Retainer Lock for ease of installing inner member.
- Disconnect / Lock Release Lever for easy chassis removal.
- Cable Management Accessory with Quick-Release.
- Cable Management Cable Holder.
- Unhanded.
- Over Travel
- Sizes: 24" / 26" / 28" / 30" / 32"

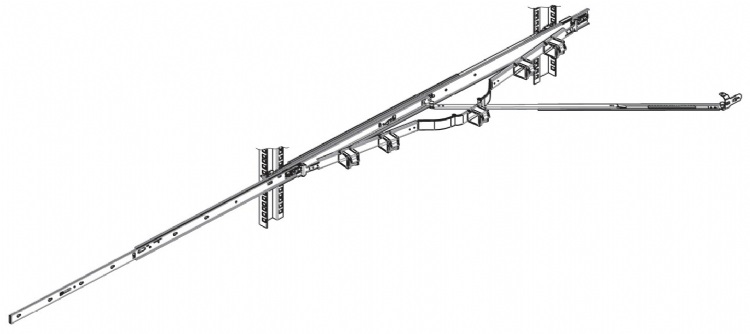

Drawings contained herein are for reference only and should not be used for product specification
Specifications
4100-00 Ball Bearing Server Slide Rail
Mounting: Side
Suitable Chassis: 438~440mm Width
Dynamic Load: 88 lbs (40 kg)
UL Static Load: 205 lbs (95 kg)
Height: 41mm (1.6")
Thickness: 7mm (Effective thickness: 5mm)
Finish: Zinc
Action: Telescopic Movement on precision steel ball bearing.
Features:
- Low Profile, Ultra Slim Width maximizes server chassis space.
- Universal Tool-Less Bracket for round or square holes.
- Ball Retainer Lock for ease of installing inner member.
- Disconnect / Lock Release Lever for easy chassis removal.
- Cable Management Accessory with Quick-Release.
- Cable Management Cable Holder.
- Unhanded.
- Over Travel
- Sizes: 24" / 26" / 28" / 30" / 32"
Drawings contained herein are for reference only and should not be used for product specification
