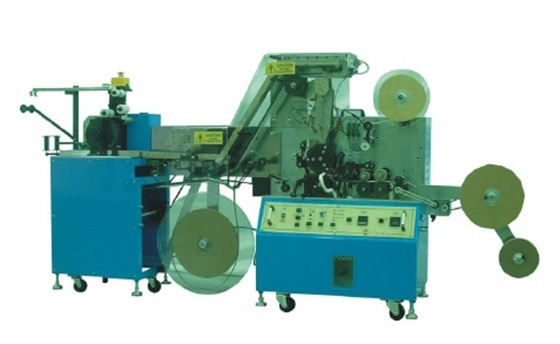

Taping&Forming Machine
Model: TPF 8207T
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Assembly Lines
Characteristics
1. Special design for PANA & AVI types resistors forming and taping functions in one unit.
2. Auto forming to required sizes and shapes, auto taping and punching at a set pitch.
3. Built-in sensor to check and correct the resistor polarity.
4. Equipped with auto-counter to indicate the quantity of taped resistor clearly, and auto stop when wind up a reel, quantity is adjustable, each 100 pieces with a countermark.
Specifications
Power Source:AC220V , 3Ø , 5060Hz |
Resistor Size: AVI Sert OD3.0mmØ Max, L8.0mm Max. Pana Sert OD2.5mmØ Max, L8.0mm Max. |
Driving Motor: 1/4HP & 1/16HP one each |
Lower Tape: ID76Ø * OD420Ø *18W*0.4mmT |
Air Pressure: 4 kg / cm2 |
Adhesive Tape: ID76Ø*OD300Ø*13or15W*0.16mmT |
Productivity: 120~150 PCS/MIN |
Interlayer Paper:ID76Ø*OD300Ø*40W*0.09mmT |
Dimension: L2450mm, W570mm, H1200mm |
Weight: 350Kg |
