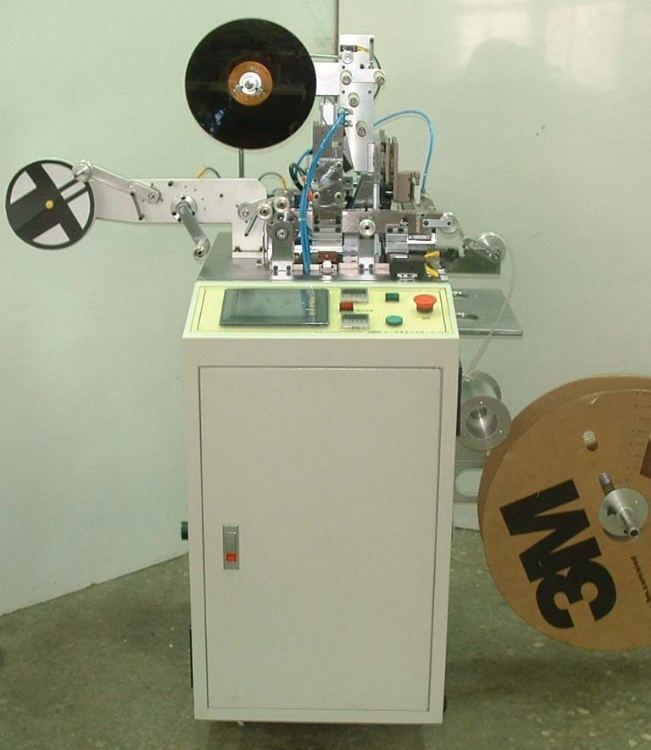

SMD Test Taping Machine
Model: CT-120N
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Material Handling Equipment
Characteristics
This machine is designed to automatically tape large size SMD components, such as ICs, Inductors, diodes, etc.
Machine Functions: Input (Tube or Vibrator) --> Chip Positioning --> Chip Picking --> Chip Placing --> Embossed Tape Sealing --> Count --> Automatically reserve blank tape between reels.
Pick and Place Mechanism: Cam and Air Combination.
Sealing Mechanism: Air Driven, Hot Melt Sealing, Temperature Control
Carrier Tape Transportation: Driven by Stepping Motor..
Contact us for more custom designed functions.
Specifications
Carrier Tape Width |
8~24mm |
Dimensions |
L1300xD600xH1200(mm) |
Weight |
Approximately 300 Kg |
Power |
220V, 1Φ, 50/60Hz . |
Air Pressure |
5Kg/cm2 |
Productivity |
120 pcs / min max |
