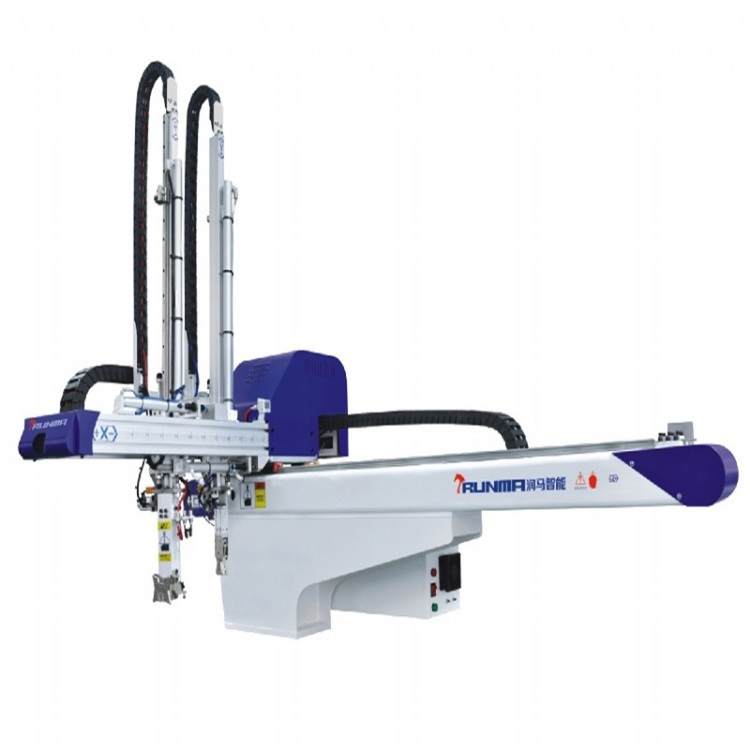

Single-Axis Servo Motor Traverse Robot
Model: 1AR-02
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Vertical Injection Molding Machines
Characteristics
Runma One Axis 700-1100 Series traversing robot arm is applicable to all types of horizontal injection machine ranging from 80 to 550 for products and sprues take-out.
Single stage or telescopic type vertical arm, with product arm and runner arm, for two plate or three plate mold products take out. Traverse stroke driven by AC servo motor, vertical and crosswise strokes are pneumatic.
- A 10-30% increase in productivity
- Reduce the defective rate.
- Ensure the safety of operators.
- Reduce manpower.
- Accurately control the output to reduce waste.
Specifications
Single Axis Robot Supplier Provides Single-Axis Servo Motor Traverse Robot, Travel 700-1100mm, Injection Molding Machine Range: 80-550 Ton, Take-out Time 1.5-2.2s.
Model | A | B | C | D | E | F | G | H | I | J | K | L |
RHD-600W(D) | 1250 | 1000 | 480 | 1300 | 175 | 195 | 210 | 140 | 720 | 370 | 1300 | 2020 |
RHD-900W(D) | 1370 | 1100 | 490 | 1290 | 900 | 1550 | 2260 | |||||
RHD-1100W(D) | 1500 | 1200 | 1410 | 1020 | 1750 | 2440 |
Model | Applied to injection molding machine (ton) | Travel (mm) | Side posture angle (degree) | Max load (including fixture) | Time (sec) | Driven way | Working pressure (kgf/cm2) | Air consumption (nl/cycle) | Power | Power consumption | NW (kg) | |||
up and down | pull out | cross traveling | take-out | empty loop | ||||||||||
RHD-600W(D) | 80-220 | 700 | main arm: 300, auxiliary arm: 200 | 1300 | 90 | 4 | 1.5 | 10 | x, y, z AC servo motor | 5-7 | 28 | AC220±10V 50/60HZ | 0.6 | 280 |
RHD-900W(D) | 200-350 | 900 | 1550 | 5 | 1.9 | 11 | 32 | 300 | ||||||
RHD-1100W(D) | 350-550 | 1100 | 1750 | 2.2 | 9.511 | 37 | 315 |
