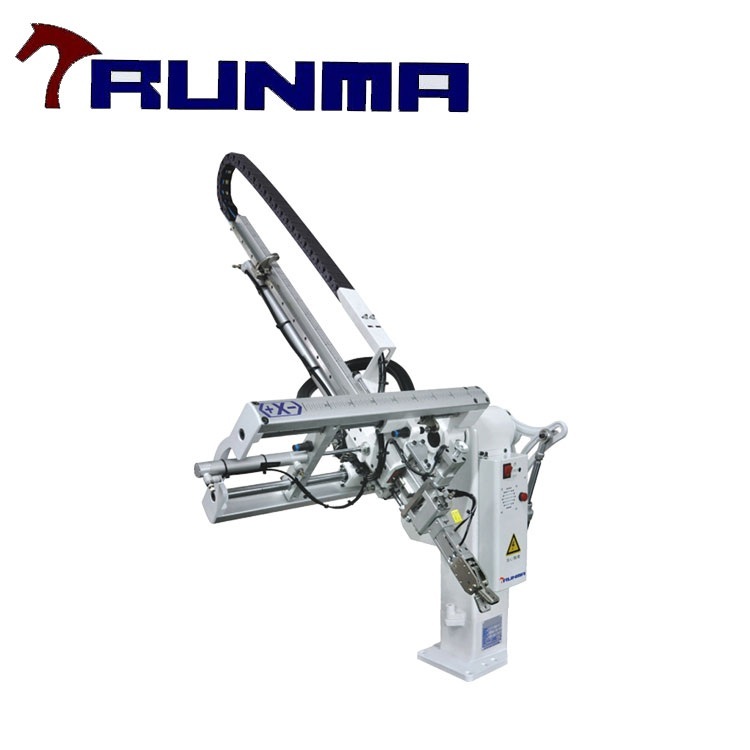

Swing Arm Robot
Model: SAR-01
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Robots for Plastic Processing Machines
Characteristics
A swing-arm robot is applicable to all types of horizontal injection machine and vertical injection molding machine of 30-150T for products and sprues take-out.
Model RX650V is for horizontal injection machine, model RL650V is for vertical injection machine, with single stage arms.
The single function is to clamp products, and the full function is products and sprues take-out.
- A 10-30% increase in productivity
- Reduce the defective rate.
- Ensure the safety of operators.
- Reduce manpower.
- Accurately control the output to reduce waste.
Specifications
Swing Arm Sprue Picker Robot Provider Offers Swing Arm Sprue Picker Robot, Single Stage, IMM 30-150T, for Picking Sprue or Separating Part and Runner.
Model | Applied to injection molding machine (ton) | Travel (mm) | Angle (degree) | Max load (including fixture) | Time (sec) | Driven way | Working pressure (kgf/cm2) | Air consumption (nl/cycle) | Power | Power consumption | NW (kg) | |||
up and down | pull out | spin out | gripper spinning | take-out | empty loop | |||||||||
RX 650V | 50-180 | 650 | standard: 120, option: 200 | 50-90 | 90 | 2 | 0.9 (0.7) | 4.2 (4.0) | air pressure | 5-7 | 14.3 (15.5) | AC220±10V 50/60HZ | 0.2 | 33 (49) |
RL 650V | 65-200 | 650 | 0.7 | 4 | 16.2 | 60 |
