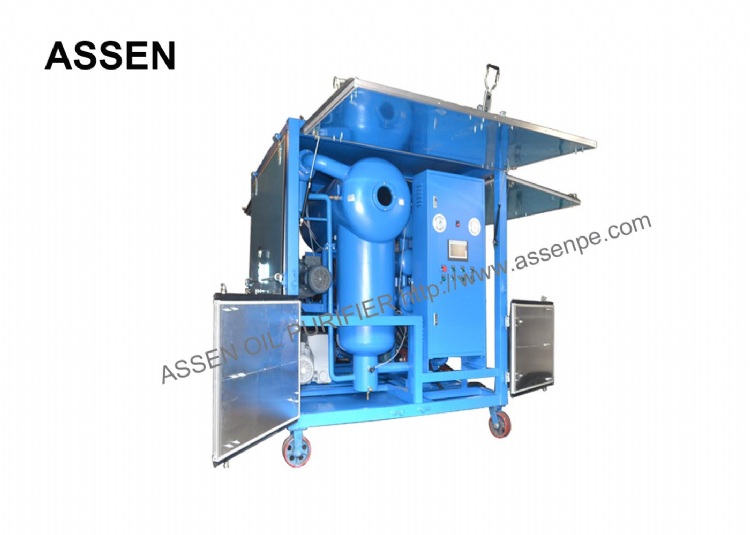

PLC Fully Automatic type Insulating Oil Purification System Plant,Vacuum Oil Purifying Plant for dielectric Insulating oil
Model: ZYD-P-100
Category: Machine Tools / Others / Other Machinery
Characteristics
ASSEN ZYD-P series is for fully automatic operation. It adopts Programmable Logic Controller (P.L.C) to achieve the automation of whole treatment process. It is suitable for filtering new oil ,imported oil and super HV transformer oil, particularly applicable to 110KV power distribution system and the national grid, shortening the oil treating duration during installation and maintenance of transformer.
Specifications
PLC Fully automatically Portable Transformer Oil Filtration System, Transformer Oil Dehydration unit
ASSEN ZYD-P series is for fully automatic operation. It adopts Programmable Logic Controller (P.L.C) to achieve the automation of whole treatment process. It is suitable for filtering new oil ,imported oil and super HV transformer oil, particularly applicable to 110KV power distribution system and the national grid, shortening the oil treating duration during installation and maintenance of transformer.
Performance:
In a single pass through the purifier at a full flow rate:
Water Removal: From 50 ppm down to less than 5 ppm in a single pass & down to 3 ppm after two passes. (According to the PPM Tester)
Gas Removal: From fully saturated with air (10% to 12% by volume) down to less than 0.1% by volume.
Particulate Matter Removal: 98% of particles over 0.5mm or over 1 mm or over 5mm at customers preference.
Dielectric Strength: Improve dielectric strength up to 75-80KV for New oil.
Technical Data
Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Flow | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 | |
Working vacuum | MPa | 0.08 0.099 | |||||||
Working Pressure | MPa | ≤0.3 | |||||||
Temperature Range | J | 20 80 | |||||||
Power | Three Phase 50HZ380V(as per the customer's requirements) | ||||||||
Working Noise | dB(A) | 75 | 75 | 75 | 80 | 80 | 80 | 80 | |
Heating Power | kW | 30 | 30 | 45 | 60 | 75 | 90 | 120 | |
Total Power | kW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | |
Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
Weight | kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 | |
Overall | Length | mm | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 |
Width | mm | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 | |
Height | mm | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 |
Features:
1.Operational control can be switch- andrelay-logic or PLC with touchscreenOnline test and monitoring equipment
2.Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3.Precise filtration system,high-quality filter element,multi-stage filtration with gradual precision can help to remove mechanical impurities in the oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7.Adopt interlocked protective system,which connect oil pump,heater and liquid level sensor,avoiding blank heating,blank pumping.
Advantages:
1.The conventional process of transformer oil exchange is time consuming, costly and not environmentally friendly.
2.Our mobile oil purification plants can regenerate the oil on site and in most cases while the transformer is online. This means there will be no production outages for you.
3.It will also be 30 to 60% cheaper to purify the transformer oil compared to exchanging the oil.
4.The process of oil purification not only restores the oil properties, but also cleans the inside of the transformer of all decay products, which would not happen if the oil was merely replaced.
