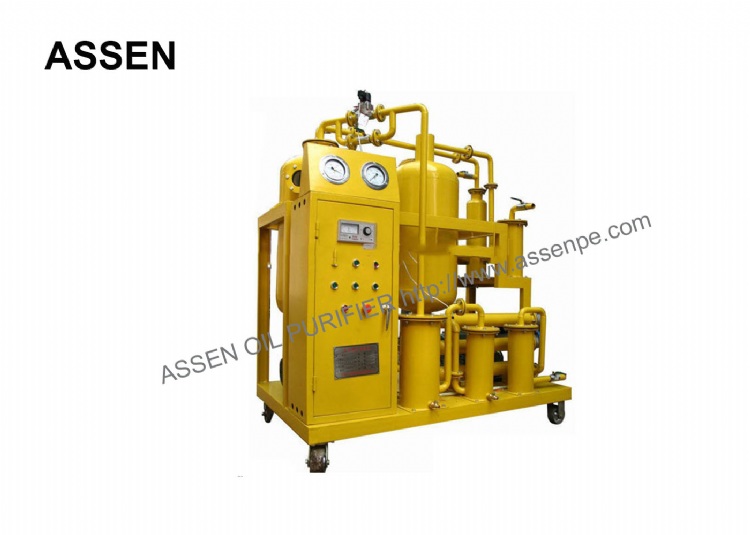

High Quality Components type Vacuum Hydraulic Oil Filtration Plant,Lube Oil Purifier Machine
Model: TYA-10
Category: Machinery Parts and Components / Other Machinery / Other Machinery
Characteristics
TYA hydraulic oil filtration machine has perfect capability of removing impurities,mass and deep precision purification material from lubrication oil and improve properties of lubricating oil so as to greatly extend lifetime of machinery.TYA hydraulic oil purifier is also equipped with permanent magnet filter to filter ferruginous impurites.
Specifications
High Quality Components type Vacuum Hydraulic Oil Filtration Plant,Lube Oil Purifier Machine
Application:
Hydraulic oil contaminated by water,gas,impurities etc. will effect lubrication system of machine and equipments,TYA hydraulic oil filtration machine has perfect capability of removing impurities,mass and deep precision purification material from lubrication oil and improve properties of lubricating oil so as to greatly extend lifetime of machinery.TYA hydraulic oil purifier is also equipped with permanent magnet filter to filter ferruginous impurites.
Features
1. According to the required cleanness, the machine can use filter element of different precision. Precision multi-stage filtration system can remove mechanical impurities in oil effectively.
2. Highly effective breaking emulsification, dehydration and degassing system. Adopted big cubage, reinforced three-dimension flash evaporating tower, membrane evaporation technology and large area multiple-level separation technology of oil, water and gas to remove water content, gas, light hydrocarbon and light acid.
3. Advanced pressure protection device and infrared liquid level control system can ensure the safety operation of the machine.
4. Stable automatic, manual electric heating temperature-control system guarantees the oil heated equally and the temperature stable.
5. Adopted highly effective strong air-cooling condensed system which can quickly decrease the temperature to draw out water vapor as well as water.
Oil comparision for treated by our TYA hydraulic oil filtration machine
Advantages of tya hydraulic oil filtration machine:
- Extend the life of your oil and equipment by two or three times
- Flush your system of contaminants
- Remove impurities and/or particulates from the oil
- Free your system of emulsified water
- Remove unwanted gases from the oil
- Rejuvenate varnished oil
- Help our environment
- Clean your entire system
- Eliminate the need of a costly shutdown
- Minimize danger to turbine, hydraulic and lube equipment
- Save you money by avoiding costly shutdowns and new oil purchases
Technical Data:
Item |
Model Unit |
TYA-10 | TYA-20 | TYA-30 | TYA-50 | TYA-100 | TYA-150 | TYA-200 | TYA-300 | |||||
Flow rate | L/Hr | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |||||
Vacuum degree | Mpa | -0.06 ~ - 0.095 | ||||||||||||
Working Pressure | Mpa | ≤0.4 | ||||||||||||
Temperature Degree | J | 0 ~ 100 | ||||||||||||
Power Supply | 3 phase, 50HZ 380V (or as required by customer) | |||||||||||||
Working noise | DB (A) | ≤75 | ≤75 | ≤75 | ≤78 | ≤78 | ≤78 | ≤80 | ≤82 | |||||
Electric heating Power | KW | 18 | 20 | 25 | 36 | 45 | 52 | 65 | 76 | |||||
Total electric Power | KW | 20 | 22 | 27 | 40 | 52 | 60 | 75 | 82 | |||||
Inlet (outlet) Caliber | mm | I25 | I25 | I25 | I32 | I42 | I50 | I50 | I60 | |||||
Size | mm | 1500x1000x 1200 | 1500x1050x 1600 | 1500x1050x1650 | 1600x1150x1700 | 1750x1250x 1850 | 1900x1600x1950 | 1900x1700x2000 |
2100x1700x 2100 |
|||||
Weight | Kg | 450 | 550 | 600 | 750 | 850 | 1000 | 1200 | 1500 | |||||
Chongqing Assen Power Equipment Co.,LTD , which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Hydraulic oil filtration, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
ASSEN warrants the plant supplied under this specification against defects in material and workmanship under normal use and service for a period of twenty (20) months from date of shipment or eighteen (18) months after the start-up of the system. ASSEN's obligation under this warranty is limited to repairing or furnishing, a similar part to replace any part, which was proven to be defective within the warranty period.
1. We customlize the machine as your requirements.
2. We have more than 10 years export experience.
3. We offer our customers high quality products at competitive price.
4. We offer our customers excellent after-sales service.
5. We are not satisfied until our customers are satisfied.
