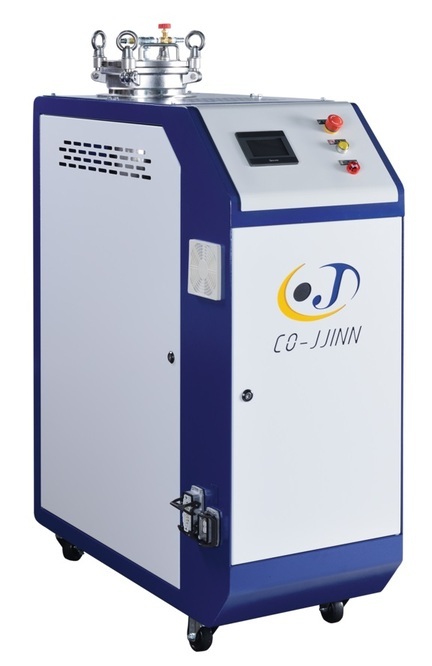

Vertical Type High Pressure Coolant Systems-VFD
Model: TV140BTW-R1-1-S
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pumps, Fans (Blowers), Compressors, and Vacuum Pumps
Characteristics
● Solve stringy chip
● Increase productivity
● Extend tool life
● Along with HMI (Human-Machine Interface) is standard
● Widely applied
● Keep constant pressure (based on recommended outlet diameter)
Specifications
| Model | TV140BTW-R1-1-S | TV140BTW34L-R1-1-S | TV230BTW-R1-1-S |
| Version | Vertical Type VFD 140Bar Energy Efficiency version | Vertical Type VFD 140Bar Standard version | Vertical Type VFD 230Bar Superior version |
| Max Pressure | 140BAR | 140BAR | 230BAR |
| Oil Ratio | 100% | ||
| Power | 7.5HP | 10HP | 15HP |
| Max Flow Rate | 23L/MIN | 34.5L/MIN | 23L/MIN |
| Internal Coolant Hole | Outlet dia. beneath 1.5mm preferred at 140Bar | Outlet dia. beneath 1.5mm preferred at 140Bar | Outlet dia. beneath 1.5mm preferred at 230Bar |
| Voltage | 220V/380V/415V | ||
| Hz | 50Hz~60Hz | ||
| Filtration (um) | 5um; 10um | ||
| Water Inlet | 1" | ||
| Water Outlet | 3/8" | ||
| Dimension(WxLxH) | 470x1080x1500 (mm) | ||
| Applicable | Machines use oil cutting fluid, particularly suitable for CNC precision automatic lathe | ||
