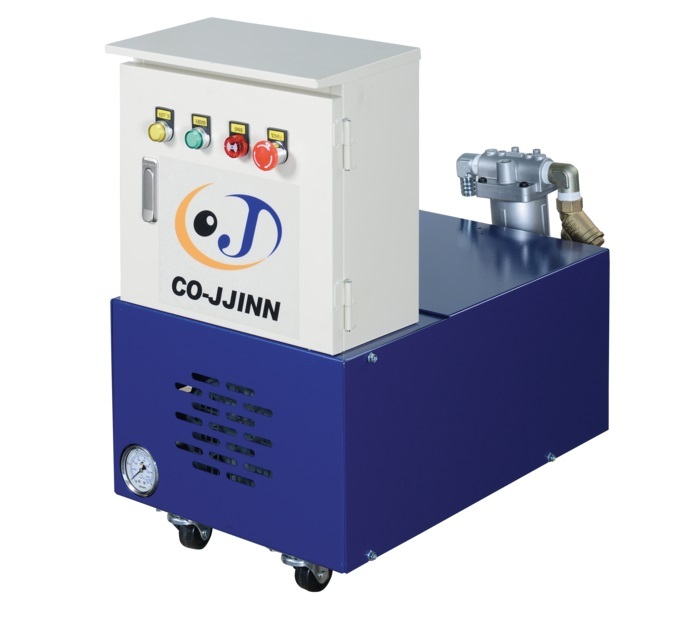

High Pressure Coolant Systems-Fixed Freq. 40Bar Oil based coolant
Model: 0V040BTW-S2-XS
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pumps, Fans (Blowers), Compressors, and Vacuum Pumps
Characteristics
* Solve stringy chip
* Increase productivity
* Extend tool life
* Affordable prices
* Could be installed under bar feeder to save space
Specifications
| Model | 0V040BTW-S2-XS |
| Max Pressure | 40 BAR |
| Oil Ratio | 100% |
| Power | 3HP |
| Max Flow Rate | 25.3L/MIN |
| Internal Coolant Hole | Outlet dia. beneath 2mm preferred at 40Bar |
| Voltage | 220V/380V/415V |
| Hz | 50Hz~60Hz |
| Filtration (um) | 100um |
| Water Inlet | 1" |
| Water Outlet | 1/2" |
| Dimension (WxLxH) | 410x740x710 (mm) |
| Option | Variable-frequency Drive |
| Applicable | Machines use oil cutting fluid, particularly suitable for CNC precision automatic lathe |
