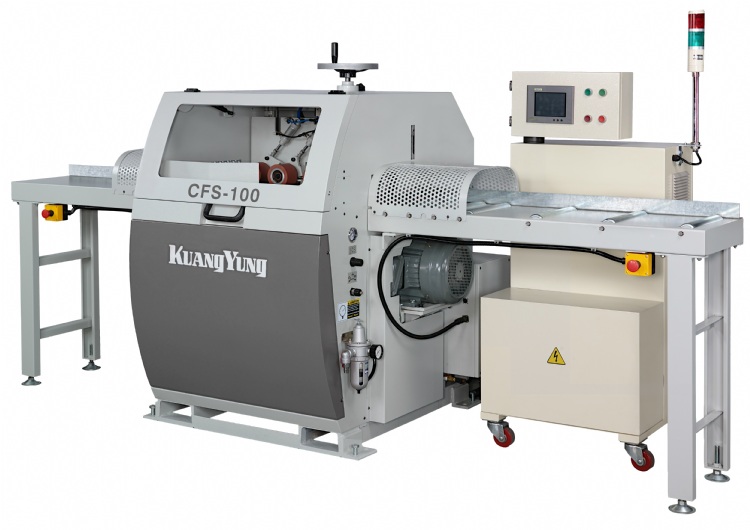

Semi-optimizing Cut-off Saw
Model: CFS-100
Category: Woodworking Machinery Industry / Sawmill Machinery / Circular Saw Bench
Characteristics
1.The productivity is 3-5 times higher than a manual machine.
2.Save more than 3% of wood material for finger-jointed lumber production.
3.Comprehensive safety guards comply with CE criteria to protect operators.
4.Maximum feed rate can reach up to 80 M/Min.
5.The material in-feed is driven by TECO servo motor, featuring high working efficiency and accuracy.
Specifications
Saw motor: 10HP
Feed motor: 2kW
Saw arbor speed: 3400r.p.m.
Feed speed: 100M/min
Maximum circlular saw dia.: 455mm(18")
Bore of circular saw: 30mm
Bed height: 900mm
Minimum feed material: 300mm
Maximum table load: 25kgs
Air compressed (Consumption): 7~9bar(160M3/hr)
Diameter of dust collector inlet: φ100mm×2
Machine weight: 900kgs
Machine dimensions(L×D×H): 1170×1210×1200mm(w/o roller table)
