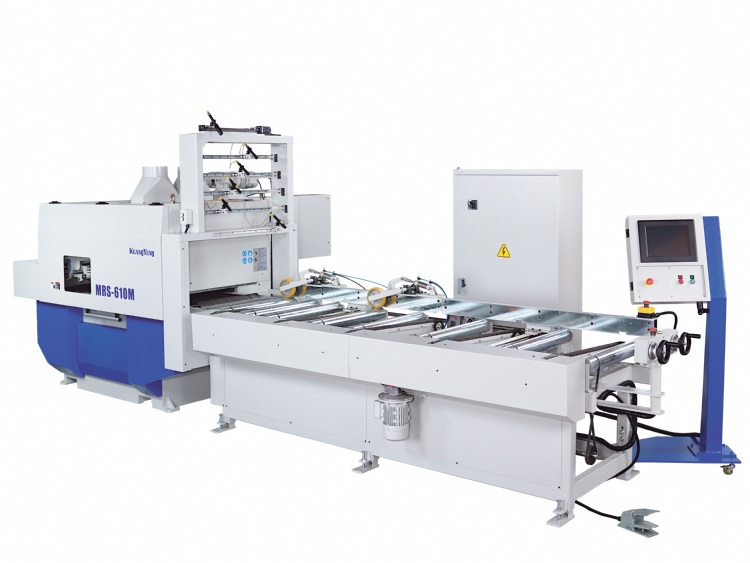

MOVABLE RIP SAW
Model: MRS-610
Category: Woodworking Machinery Industry / Sawmill Machinery / Gang Rip Saw
Characteristics
．By applying Multi-axes(Max:4axes) moving saw design, different widths of products can be completed in one cut.
．Wider cut width (Max:610) with more powerful arbor motor and high speed feed chain.
．Wide cut width extends application range, which provides the best solution for high efficiency and cut optimization, especially for high quality timber.
．Saw arbor support. Maximum stability of saw arbor is achieved through the firm support at the end.
．2.2~2.6mm ultrathin saw blade. Ultrathin patented saw blade is able to do panel joint ripping. Max. ripping speed reaches 60m/min.
Specifications
Saw arbor motor：50, 60, 75, 100 or 125HP
Feed motor：5HP
Max. cut thickness of movable saw (w/o pressure plate)：60mm (12"blade),100mm(14"blade)
Numbers of movable saw：3~4 axes
Max. material width of pass-through：900 mm
Max. cut width：610mm
Min. material length：610mm
Max. sawblade diameter：φ355mm (14")
Min. sawblade diameter：φ305mm (12")
Sawblade bore：φ90mm
Saw arbor diameter：φ70mm
Saw arbor speed：4200r.p.m.(50Hz)/4500r.p.m.(60Hz)
Variable feed speed：8~60M/min
Dust hole diameter：φ100mm×1,φ200mm×2
Table height from floor〔H〕：850mm
We reserve the right to amend any of the above specifications without prior notice.
