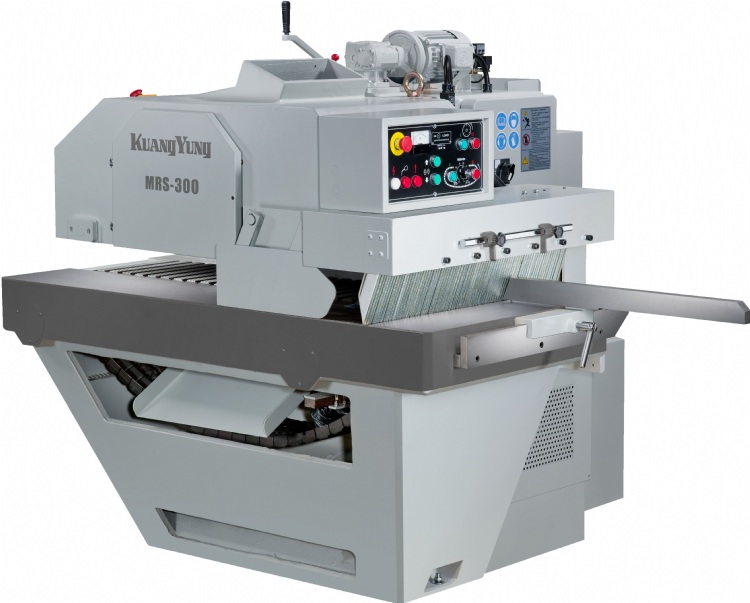

Multiple Rip Saw
Model: MRS-300
Category: Woodworking Machinery Industry / Sawmill Machinery / Gang Rip Saw
Characteristics
¡´Feed Chain Mechanism
The feed chain slats are made of special cast iron. The high-grade steel connecting pins are heat treated and precision ground. Each precisely made part guarantees straight line dip feed, even at high speeds.
¡´Short and Thin Piece Ripping
Each two rows of pressure rollers at the front and rear, combined with a specially designed pressure shoe, make it possible for short or thick stock.
¡´Replaceable Slats with Casting Insert(optional)
Easy to replace with slats.
¡´Replaceable Slats with Rubber Insert(optional)
This is used to prevent damages to the board surface.
Specifications
Max. cutting thickness¡G 120 mm (4.724")
Max. cutting thickness (w/short stock device)¡G 95 mm (3.74") (optional)
Max. cutting width¡G 300 mm (11.811")
Distance from column to link chain center ¡G360 mm (14.173")
Mini. working length¡G 500 mm (19.685")
Mini. working length ¡G(w/short stock device) 300 mm (11.811") (optional)
Max. sawblade diameter¡G 350 mm (14")
Mini. sawblade diameter ¡G 250 mm (10")
Sawblade bore ¡G70 mm (2.756")
Saw arbor diameter¡G 50 mm (1.969")
Saw arbor speed¡G 3800 rpm
Saw arbor motor ¡G30, 40, 50 HP
Variable feed speed ¡G7.5-30 M/min (24'-98'/min)
Variable feed speed (for electrical amperage display)¡G 2.5-24 M/min (8'-79'/min)
Feed motor¡G 2 HP (3HP on request)
Hold down roller elevating motor¡G 0.5 HP
Table area (LxW) ¡G1530mm x 760mm (60"x30")
