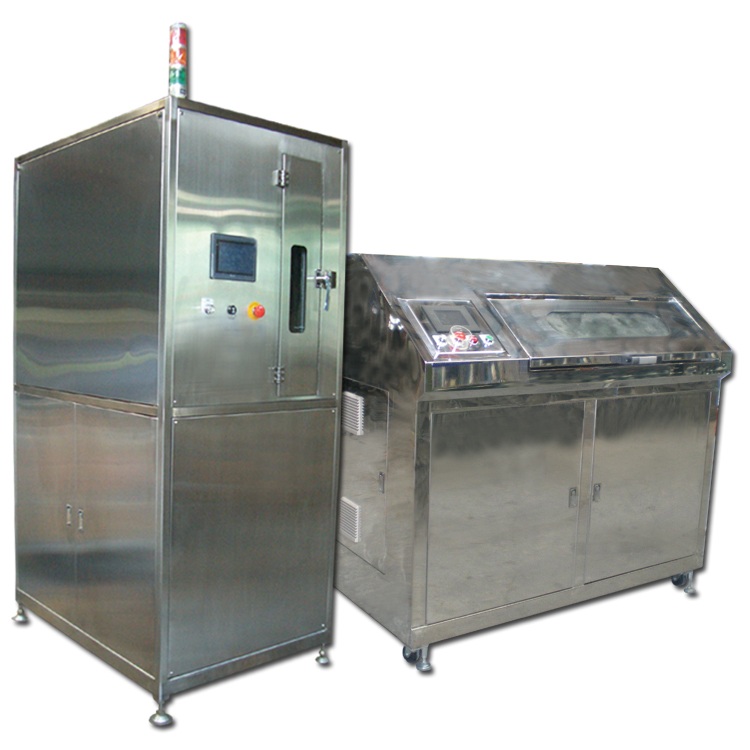

Ultrasonic Stencil /Screens Cleaning Machine
Model: PSS750
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
Scope Of Application: Apply to SMT steel version, screen, PCB substrate, and other kinds of Fine Pitch ...
Features:
Water-soluble solvent without flash fire problem
Machine Material for SUS304 assemble, prevent water leakage, prevention corrosion.
Cleaning process does not damage the surface of the object
Simplify cleaning procedures, safe working
Spray+hot air dryingupper,lowerultrasonic cleaning,wet and dry separation
Human interface pane operation settingB monitoring, clear determine.
Specifications
Model |
USS750 |
USS750A |
Machine size |
800x1100x2100 mm |
1600x1430x1760 mm |
Voltage |
220VASingle-phaseA 50Hz/60Hz |
220VAthree-phaseA 50Hz/60Hz |
Sprayer tank size |
750x750x40 mm |
750x750x40 mm |
Total power consumption |
around 6.5 Kw |
around 9 Kw |
Solvent inlet pipe |
3/4” |
3/4” |
Waste water drainage pipe |
3/4” |
1” |
Ultrasonic tank power |
1200W / 40KHz |
1800W / 40KHz |
Machine weight |
around 375Kg |
around 400Kg |
Ultrasonic tank heating power |
1.5 Kw |
6 Kw |
Drying heating power |
3 Kw |
Normal temperature |
Solvent tank capacity |
around 70L |
around 150L |
Filter |
10”Filter |
10”Filter |
