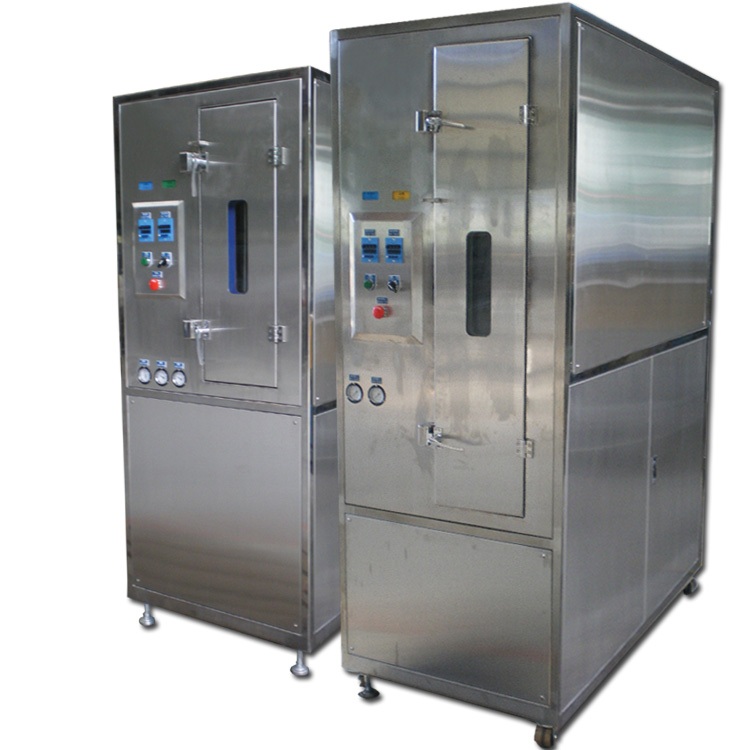

Pneumatic Stencil / Screens Cleaning Machine
Model: PSS750 / PSS1200
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
Scope Of Application: Apply to SMT steel version, screen, PCB substrate, and other kinds of Fine Pitch ...
Features
Equipment for all pneumatic, save power consumption, to prevent the explosion design.
Machine Material for SUS304 assemble, prevent water leakage, prevention corrosion.
For IPA, acetone, MEK high-volatile solvent (Recommended MEK below the boiling point 40 degrees )
With multi-stage of automatic filtering solventfunction
High Efficiency impurity filter system of dross and Flux etcK to ensure the cleanliness of cleaning objects
Automatic cleaning and drying, only 9 minutes.
Independent discharge of waste solvent, can be used with solvent recovery processing equipment.
Specifications
Specification |
PSS750 |
PSS1200 |
Machine size |
800x1100x2000 mm |
800x1500x2250 mm |
Machine material |
SUS304 |
SUS304 |
Stencil size |
750x750x40 mm |
1200x1200x40 mm |
Solvent |
Normal solvent or company solvent |
Normal solvent or company solvent |
Solvent inlet pipe |
3/4" |
3/4" |
Waste water drainage pipe |
1/2" |
1/2" |
Filter recycle pump |
3 recycle filter |
3 recycle filter |
Machine weight |
around 200 Kg |
around 350 Kg |
Operating pressure |
4~4.5 Kg/Q2 |
4~4.5 Kg/Q2 |
Air consumption |
3HP(465/min) up |
3HP(465/min) up |
Solvent tank capacity |
around 55L |
around 65L |
