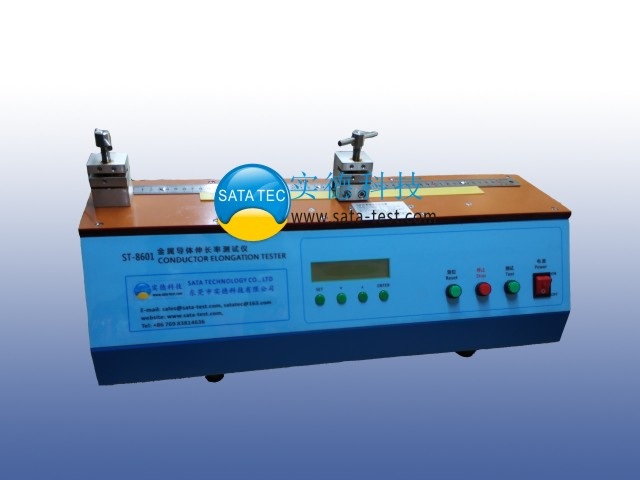

Conductor Elongation Tester
Model: ST-8601 Series
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
ST-8601 Series Conductor Elongation Tester
Standards: According to 3.1 of GB/T 4074.3-2008, IEC 60851-3:1997
Scope: Applies to check the elongation of aluminum, copper, iron etc. material wire & cable
Specifications
ST-8601 Series Conductor Elongation Tester
Standards: According to 3.1 of GB/T 4074.3-2008, IEC 60851-3:1997
Scope: Applies to check the elongation of aluminum, copper, iron etc. material wire & cable
Technical parameters:
- Diameter of test sample:
ST-8601S |
ST-8601M |
ST-8601L |
Ø0.08-0.8mm |
Ø0.8~1.6mm |
Ø1.6~3.2mm |
- Elongation speed: 250~300mm/min
- Length of test specimen: 250mm
- Elongation range: 0~60%
- Displayer: LCD digital displayer.
- Precision: 0.1%, and showing accuracy better than ± 1%
- Ambient condition:
Temperature: 0~40°C
Relative temperature: ≤85%
- Storage function: it can be memory the test result.
- Show the position of the moving fixture and the elongation rate at current.
- Power supply: 220V/AC, 2A, 50 / 60HZ
- Dimension: 600*210*240 mm
Note: Can be according to customer’s request to design add force test device, which range is 0.1-500N and display by digital.
ST-8601 Series Conductor Elongation Tester
Standards: According to 3.1 of GB/T 4074.3-2008, IEC 60851-3:1997
Scope: Applies to check the elongation of aluminum, copper, iron etc. material wire & cable
Technical parameters:
- Diameter of test sample:
ST-8601S |
ST-8601M |
ST-8601L |
Ø0.08-0.8mm |
Ø0.8~1.6mm |
Ø0.1.6~3.2mm |
- Elongation speed: 250~300mm/min
- Length of test specimen: 250mm
- Elongation range: 0~60%
- Displayer: LCD digital displayer.
- Precision: 0.1%, and showing accuracy better than ± 1%
- Ambient condition:
Temperature: 0~40°C
Relative temperature: ≤85%
- Storage function: it can be memory the test result.
- Show the position of the moving fixture and the elongation rate at current.
- Power supply: 220V/AC, 2A, 50 / 60HZ
- Dimension: 600*210*240 mm
Note: Can be according to customer’s request to design add force test device, which range is 0.1-500N and display by digital.
