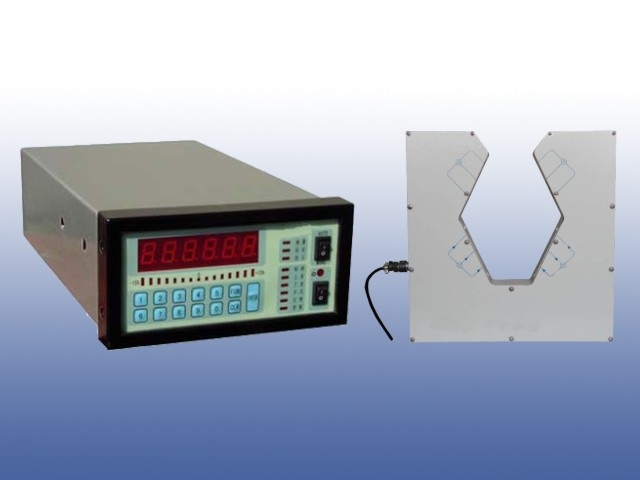

Two-dimensional Laser Diameter Controller
Model: LDM-XY series
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Inspecting & Measuring Instruments, and Parts
Characteristics
Summary: Two-dimensional Laser Diameter Gauge is the high-accuracy survey instrument that uses the laser scan of no-touch and measuring on line.Both directions (X axis and Y axis) for measuring the diameter.
Used range: Applicable to measure the diameter and controlling of metal wires, glass, pipes, rubber pipes, wire and cable etc. Bi-directional measurement at same time and showing the average, at the same time can be display O/D and roundness of cable and pipes etc.
Specifications
LDM-XY series Two-dimensional Laser Diameter Gauge
Summary: Two-dimensional Laser Diameter Gauge is the high-accuracy survey instrument that uses the laser scan of no-touch and measuring on line. Both directions (X axis and Y axis) for measuring the diameter.
Used range: Applicable to measure the diameter and controlling of metal wires, glass, pipes, rubber pipes, wire and cable etc. Bi-directional measurement at same time and showing the average, at the same time can be display O/D and roundness of cable and pipes etc.
Technical parameters:
Model |
Range |
Resolution |
Accuracy |
LDM-XY25 |
0.1-25mm |
0.001 |
±0.02%*Reading±0.001mm |
LDM- XY50 |
0.2-50mm |
0.001 |
±0.02%*Reading±0.002mm |
LDM-XY60 |
0.2-60mm |
0.001 |
- Survey methods: Laser Scanning method;
- Laser unit: Visible semiconductor laser of red color
- Laser output: Power <2mW
- Power supply: 220V/AC±10%, 50/60Hz;
- Operating temperature: -10~40°C and humidity <95%RH
- Work method: Continuously
- Power: <30W
- Dimensions:
- LDM-XY25 & LDM-XY50: measuring head is 400 * 400 * 80mm with LED displayer on it
- LDM-XY60: Measuring head is 372 * 360 * 60 without displayer on it
- Stand: L350 * W200 * H (700-1000) mm, the height can be adjust.
- Center height of surveying position: 900-1200mm
