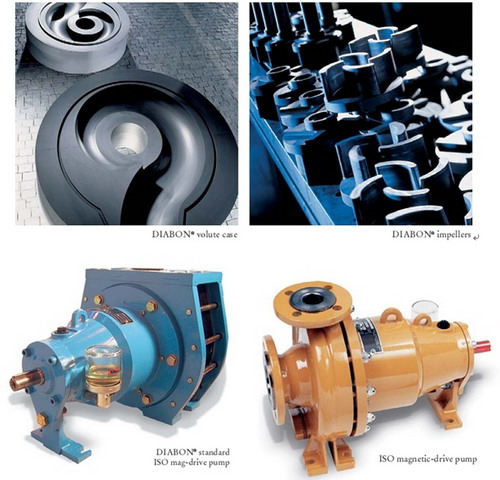

Graphite Chemical Pumps & Exotic Alloy Chemical Pumps
Model: Standard ISO Series
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Motors and Pumps
Characteristics
Graphite Series-
1.Standard chemical pump meets ISO 2858
2.Made of graphite impregnated with phenolic resin
3.Capacities range from 2 to 2000 m³/h
4.Discharge heads from 5 to 120 m
5.Maximum operating temperature: 200°C
6.Robust construction with solid graphite parts
Exotic Metal Series-
1.Standard chemical pump meets ISO 2858
2.Material range of lining - Titanium, Zirconium and Nickel alloy
3.Capacities Range from 2 to 3000 m³/h
4.Discharge heads from 5 to 150 m
5.Maximum operating temperature: 180°C
6.Special lining design offers better corrosion resistance than cast version.
Specifications
Standard Series according to ISO-2858 standard
Avialable for catalogue & Spec.sheet
