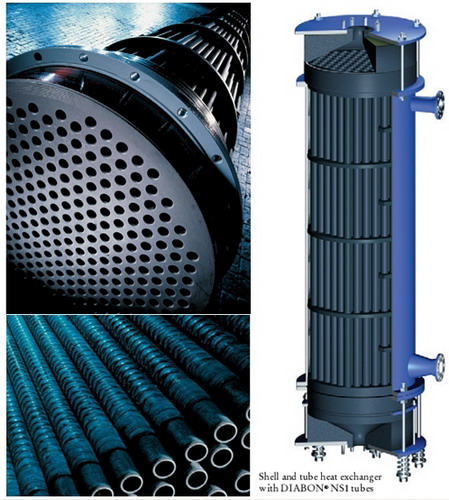

Graphite Shell & Tube Heat Exchangers
Model: Graphite Shell & Tube Heat Exchangers
Category: Automatic/Industrial Machines & Equipments / Chemical Industry Machines / Heat Exchangers
Characteristics
Graphite-based shell and tube heat exchangers combine the universal corrosion resistance and high temperature operation (up to 200℃ - certified by TÜV). Graphite tubes reinforced with carbon fiber have increased bursting strength from 30% to 40% improving its resistance to hammering and pressure shock. In the event of sudden increase in pressure resulting in the cracking of the graphite tubes, the carbon fiber ensures no leakage of liquid; thus removing the need to shut down the system.
Specifications
1.Large heat exchange area (over 2000m2)
2.Max.service side Pressure 16Bar
3.With permission of steam on the service side,
4.excellent drainage of the condensation
5.Max. service temperature up to 200℃
6.Tube sheet made from whole graphite
7.Designed for AD specification, and certificated by TÜV
