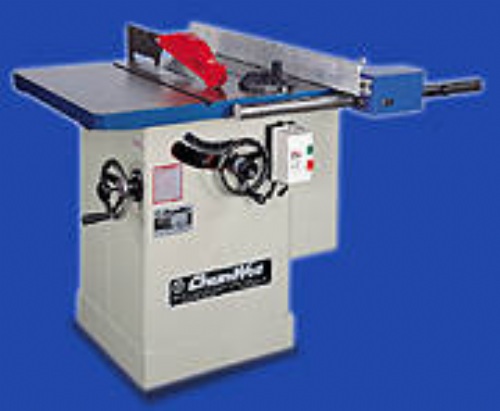

Tilting arbor table saws
Model: CW-10;CW-12;CW-14
Category: Woodworking Machinery Industry / Sawmill Machinery / Circular Saw with Tilting Arbor
Characteristics
FEATURES
1.The rigid saw guard and splitter are fitted with
anti-kickback pawl for operator safety.
2.Blade tilts 45° to one side.
3.Precision ground table.
4.Handwheels control tilting, raising and lowering of
saw blade. Saw blade can be locked at any
position.
5.Frame is one-piece constructed, heavy welded
steel plate, extremely rigid.
6.Aluminum rip fence can be used on either side of
the saw blade. Rip fence is guided by means of
guide rails fastened to the front and rear of the
table. Rip fence locks on the front guide rail
ensuring rigid support.
7.Front guide rail is calibrated to show the distance
between the fence and the saw blade.
Specifications
CW-10
Diameter of saw blade.........10" (250mm)
Size of main table...............36"x27" (915 x 685mm)
Speed of saw blade.............4200 RPM
Motor power required...........2HP (3HP on request)
CW-12
Diameter of saw blade.......12" (300mm)
Size of main table.............40"x30" (1020 x 760mm)
Speed of saw blade...........4000 RPM
Motor power required.........2HP (3HP on request)
CW-14
Diameter of saw blade.......14" (350mm)
Size of main table.............46"x36" (1169 x 915mm)
Speed of saw blade...........3800 RPM
Speed of saw blade...........5HP (7.5HP on request)
STANDARD EQUIPMENT
*Rip Fence......................1 PC
*Miter gauge ..................1 PC
*Table insert ..................1 PC
*Splitter with guard........1 PC
*Spanners.......................1 PC
SPECIAL EQUIPMENT
*Sliding table unit
*Extension rail
*Saw blade
*Chips exhaust outlet
