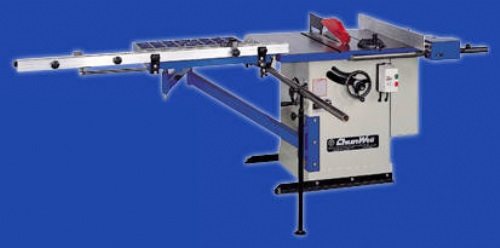

Tilting Arbor Table Saw with Sliding Table
Model: CW-10S;CW-12S;CW-14S
Category: Woodworking Machinery Industry / Sawmill Machinery / Circular Saw with Tilting Arbor
Characteristics
1.The rigid saw guard and splitter are fitted with anti-kickback pawl for
operator safety.
2.Blade tilts 45° to one side.
3.Precision ground table.
4.Handwheels control tilting, raising and lowering of saw blade. Saw
blade can be locked at any position.
5.Frame is one-piece constructed, heavy welded steel plate, extremely
rigid.
6.Aluminum rip fence can be used on either side of the saw blade. Rip
fence is guided by means of guide rails fastened to the front and rear
of the table.
7.Rip fence locks on the front guide rail ensuring rigid support.
8.Front guide rail is calibrated to show the distance between the fence
and the saw blade.
Specifications
SPECIFICATION OF SLIDING TABLE (1 set)
Sliding table size W30" x L18" (760 x 460 mm)
Sliding table extension size W49" x L28" (1245 x 710 mm)
Sliding table stroke 82" (2083 mm)
Packing size 86" x 24" x 8" 9.6 cuft
Net weight 73 kgs (161 lbs)
Gross weight 108 kgs (238 lbs)
