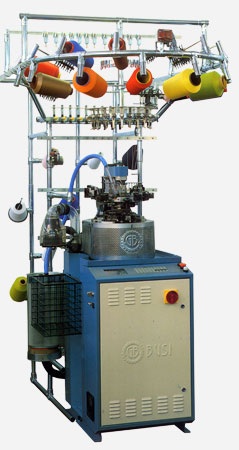

Socks Knitting Machine(Fully Computerized)-Italy
Model: Idea
Category: Machinery Parts and Components / Machinery Parts and Components / Lubricators
Characteristics
IDEA is a high production single cylinder sock machine with latch needles in the dial to enable it to produce true rib socks for men and children and it is provided with full electronic control.
The machine is available in two versions, IDEA and IDEA S.
Specifications
Technical Data & Feature
Diameter: 3", 3¼", 3½", 3 ¾", 4"
Needles: 80 - 320
Available gauges : 24, 36, 48, 54, 70
Max. mechanical speed: 300 r.p.m.
Speed in heels: 260 courses P.M.
Weight: 420 kg
Dimensions 130 150 x 235 (cm)
Stitch adjustment by step motors
Automatic stiffening on each step motor
Cylinder motion by Brushless motor
Possibility to store several articles in memory
Possibility to run a sequence of up to 4 different articles.
Possibility to modify the programs and/or the machine parameters during knitting
Programs are loaded through a USB stick or through the network
UPS power backup system
Photocell dropout control
Automatic lubrication
All shafts work on roller bearings
