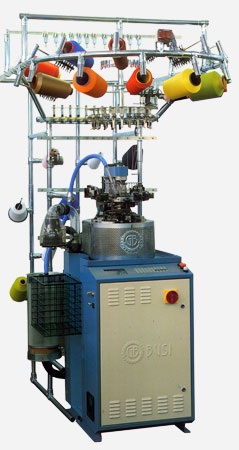

Socks Knitting Machine(Fully Computerized)-Italy
Model: IDEA MP
Category: Machinery Parts and Components / Machinery Parts and Components / Lubricators
Characteristics
IDEA MP is a high production single cylinder machine for the production of socks for men and children with terry and plain fabricand it is equipped with full electronic control
The terry device enables the fully automatic switching from plain stitch to half terry and to full terry
The machine is available in two versions, IDEA MPandIDEA SMP.
Specifications
Technical Data & Feature
Diameter: 3”, 3¼”, 3½”, 3 ¾”, 4”
Needles: 80 - 220
Available gauges : 24, 36, 48, 54
Max. mechanical speed: 260 r.p.m.
Speed in heels: 260 courses P.M
Weight: 420 kg
Dimensions 130 150 x 235 (cm)
Stitch adjustment by step motors
Automatic stiffening on each step motor
Cylinder motion by Brushless motor
Possibility to store several articles in memory
Possibility to run a sequence of up to 4 different articles.
Possibility to modify the programs and/or the machine parameters during knitting
Programs are loaded through a USB stick or through the network
UPS power backup system
Photocell dropout control
Automatic lubrication
All shafts work on roller bearings.
