Ironworker - Steelworker
Model: HKM 115 NC
Category: Machine Tools / Metal Forming Machine Tools / Hydraulic Punching Presses
Characteristics
Technical Information :
� Power (Pressure) : 115 Ton
� Motor Power : 11 kW
� Weight : 3000 Kg + NC with Table (350 Kg) = 3.350 Kg – Net
� Dimensions : 2200 x 2180 x 2040 (L x W x H)
� Power Supply : 380V-3Ph-50Hz
Standard Equipment :
� Punch and Die Ø 22
� Punch Holder
� Flat Bar Cutting Blade
� Solid round – square cutting blade
� Angle shear
� Notching blade
� Working bight
� Centralised lubrication system
� C-Spanner
� Electrical back gauge
� Machine is controlled by two foot pedals
� Hydraulic elements: Duplomatic (Italian) components used.
� Electric equipments: Siemens (German) or Telemecanique(France)
� Built according to EC Safety Directives .(CE Mark) and ISO 9000 Certificate
� User’s Manual in English
Specifications
FIVE WORK STATIONS
1-Punching:
With Punching tool, holes and punches up to Ø 55mm (in 16mm thickness) can be made easily and efficiently. The punches and dies are interchangable and easy to change. Special tools and punches are avaliable upon request.
- Diameter x max.thickness : Ø 34x26 mm
- Diameter x thickness : Ø 55x16 mm
- Max. diameter : Ø 110x5 mm
- Stroke : 80 mm
- Stroke Count in (20mm) : x25
- Throat depth : 355 mm
- Working height :1110 mm
For Punches over Ø 38mm special tool holders are necessary!
12/04/2012
Page 3 / 4
Customer : HARP MACHINE
Reference : Mr. Heather McCamlie

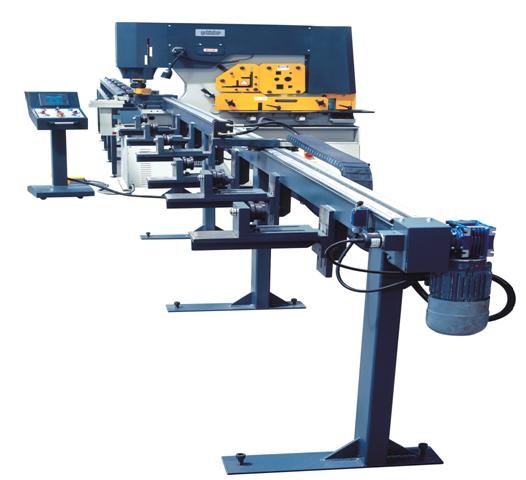

HKM 115 HYDRAULIC STEELWORKER WITH NC FEEDING TABLE
2-Steel Bar Shearing:
With this part of the machine 50mm square and round up to 55mm can be cut quickly.
- Round / Square : Ø55 mm - □50 mm
3-Angle Shear:
With standard tools you can cut any angle at 90° or 45°. With special tools you can also cut U-I or T sections. Special blades are available upon request
- Angle section (90°) : 150x150x16 mm
- Angle section (45°) : 80x10 mm
- Working height :1215 mm
4-Sheet Metal Shear:
You can do daily sheet metal cutting jobs very easily.
- Sheet metal : 380x25 mm
- Sheet metal : 600x15 mm
- Blade length : 610 mm
- Shearing with angle : 120x15 mm
- Working height : 935 mm
5-Notching:
The machine comes with a rectengular notching tool which you can use for general purpose. Special V- notching tools are also avaliable upon request.
- Thickness : 13 mm
- Width : 60 mm
- Depth : 100 mm
- Working height : 935 mm
Optional Equipments:
- U-I section blades : 200x90 mm
- T Section blades : 120x13 mm
- Special V-notching tooling : 100x100x13 mm
- V bending press brake : NOT AVAILABLE ON THIS MODEL
- Punching on notcher
Throat dept : 125 mm
Max. capacity : 38x12 mm
