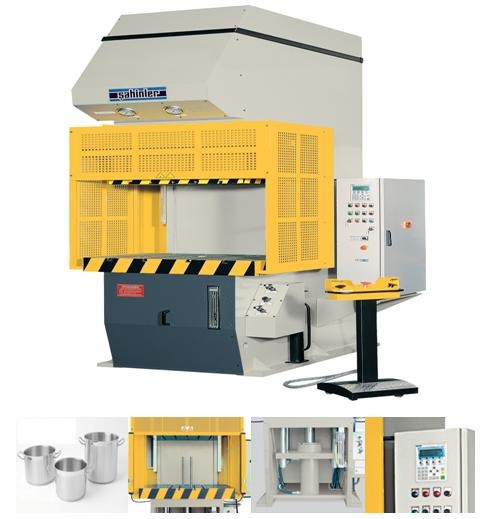

Hydraulic Press
Model: HKP-Z 150
Category: Machine Tools / Metal Forming Machine Tools / Deep-Drawing Hydraulic Presses
Characteristics
Standard Equipment :
� Steel Welded Construction
� Manual and Automatic Working wih Two Hand Control Panel
� Programmable Logic Control allows to fully adjust the stroke without steps and contactors
� Cushion Stroke can be adjusted without steps and contactors
� Hydraulic Systems are worldwide brands such as Rexroth, Bosch or Parker
� Electrics are Telemecanique or Siemens
� Top Ram is equipped with lubricant-free slide system
� Suitable for CE regulations
� Users Manual Book in English or German
Specifications
|
Press Power |
kN |
1500 |
Hole on Die |
Ø mm |
120 |
|
Stroke |
mm |
500 |
Cushion Power |
kN |
400 |
|
Working Pressure |
bar |
254 |
Cushion Stroke |
mm |
200 |
|
Advance Speed |
mm/sec |
100 |
Return Speed of Cushion |
mm/sec |
40 |
|
Working Speed |
mm/sec |
5,5 |
Cushion Table |
mm |
720x540 |
|
Return Speed |
mm/sec |
165 |
Cushion Pressure |
bar |
160 |
|
Throat Height |
mm |
750 |
Motor Power |
kW |
11 |
|
Die Table Dimension |
mm |
750x1200 |
Pump-Flow |
lt/min |
63 |
|
Ram Table Dimension |
mm |
650x950 |
Oil Tank |
lt |
280 |
|
Center Distance |
mm |
320 |
Weight |
kg |
10000 |
|
Dimensions( L x W x H) |
mm |
2225x1600x3850 |
|||
