Vane-type diatomite filter
Model: GDYTG
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Cleaning Machinery and Equipment
Characteristics
1.Diatomite filter machine
2.High quality , good price
3.ISO9001:2000
4.CE
5.OEM service offered
Specifications
Vane-type diatomite filter machine
1. There are two kinds of vane-type diatomite filter: vertical vane-type diatomite filter and level vane-type diatomite filter.

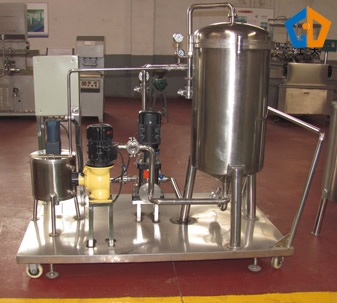

2. Diatomite filter contains of main machine ,diatomite tank , transfusion pump , measurement pump . The main machine contains of the shuck , filter frame ,compaction system etc.
3. Apply for
The beverage industry:fruits and vegetables juice , tea drinks ,beer ,yellow wine , white liquor, grape wine ,drink syrup .
Sugar industry : fruit grape syrup , high fruit syrup , grape syrup , sucrose , beer sugar , honey
Seasoning : vinegar , soy sauce , monosodium glutamate
Pharmaceutical industry : antibiotic , vitamin , synthesis blood plasma , Chinese native medicine extract
Chemical product : resin ,inorganic acid ,organic acid , alcohol , benzene , aldehyde , ether and so on
Other : gelatin , bone glue , seaweed rubber , vegetable oil , starch and so on
4. Features
Sealed cover , prependicular filter Vane ,compact structure ,few movable parts , convenient to maintenance .
Easy to operate , disassembling is unnecessary when cleaning and discharging , low labor intensity.
Superior quality of corrosionproof , long-life for use.
Stable operation ,reliable quality , effective filtering and excellent result.
High production efficiency ,low energy consumption and little loss of beer .
5. Technical parameter
Model |
Filter ]m^ |
Pieces of vane |
Filter quality ]t/h^ |
Inner diameter ]mm^ |
|
Maxumum working pressure (MPa) |
Gross weight(t) |
||
Length |
Width |
Height |
|||||||
YTG-3 |
3 |
11 |
2-2.5 |
500 |
1800 |
1000 |
1630 |
0.6 |
1.2 |
YTG-5 |
5 |
9 |
3-4 |
600 |
2000 |
1400 |
2650 |
0.6 |
1.5 |
YTG-8 |
8 |
11 |
5-7 |
800 |
3300 |
1840 |
2950 |
0.6 |
1.8 |
YTG-12 |
12 |
11 |
8-10 |
1000 |
3300 |
2000 |
3000 |
0.6 |
2 |
YTG-16 |
16 |
15 |
11-13 |
1000 |
3300 |
2000 |
3000 |
0.6 |
2.1 |
YTG-25 |
25 |
15 |
17-20 |
1200 |
4800 |
2950 |
3800 |
0.6 |
2.8 |
YTG-30 |
30 |
17 |
21-24 |
1200 |
4800 |
2950 |
3800 |
0.6 |
3.0 |
YTG-40 |
40 |
17 |
28-32 |
1400 |
4800 |
3000 |
4200 |
0.6 |
3.2 |
YTG-50 |
50 |
19 |
35-40 |
1400 |
4800 |
3000 |
4200 |
0.6 |
3.6 |
