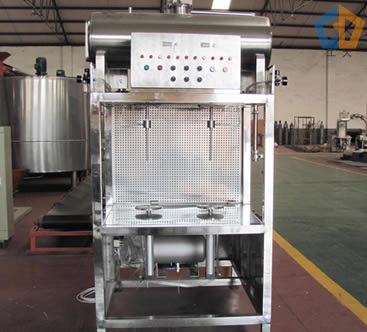

Aseptic filling machine
Model: gdwjgz
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Automatic Weighing & Filling Machines
Characteristics
This machine is specially designed for 5L pop cans.
The control unit adopts Siemens small PLC for controlling the whole process.
This machine can be used to finish aseptic filling in condition of sterilize by membrane filter machine and ultraviolet lamp.
The machine fills the beer barrel in the way of vacuum-pumping and CO2 pressure preparation
Specifications
Aseptic filling machine
1. The main component:
The machine includes frame, the electrical control system, solenoid pilot actuated value, pneumatic components, membrane filter fan, ultrafine lamp, systems back to wine components.
2. Features:
This machine is specially designed for 5L pop cans.
The control unit adopts Siemens small PLC for controlling the whole process.
This machine can be used to finish aseptic filling in condition of sterilize by membrane filter machine and ultraviolet lamp.
The machine fills the beer barrel in the way of vacuum-pumping and CO2 pressure preparation
3. Main technical parameter
|
Size of plate form |
960mm×800mm |
|
Height of plate form |
800mm |
|
Size of the machine |
1000mm×1300mm×1530mm |
|
Production capacity |
50 ~ 70keg per hour |
|
Pressure of the beer |
0.2------0.3Mpa |
|
Pressure of the air |
0.6------0.7 Mpa |
|
Pressure of the CO2 |
0.2------0.3 Mpa |
|
Pressure of the cylinder |
0.3------0.5 Mpa |
|
Voltage of the electricity |
AC220V 50HZ |
