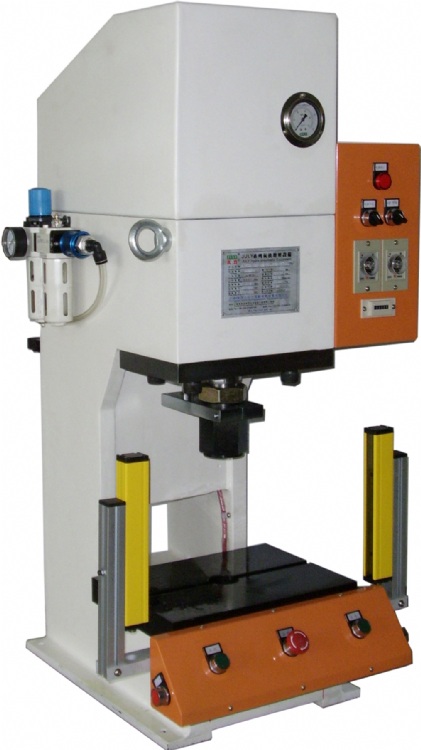

High quality WELLNA diameter 100 WNHC hydraulic press machine and pneumatic press machine
Model: WNHC-100-10E-50L-560-15T-220V
Category: Machine Tools / Metal Forming Machine Tools / Hydraulic Punch Presses
Characteristics
Condition: New
CNC or Not: Normal
Power Source: Hydraulic
Place of Origin: Guangdong, China (Mainland)
Brand Name: WELLNA
Model Number: WNHC-100-10E-50L-560-15T-220V
Voltage: 220V
Weight: 200kg,200KG
Dimension(L*W*H): 340*650*1080MM
Certification: CE
Warranty: one year
After-sales Service Provided: Overseas service center
available height: 235
cylinder: Diameter 80*100*50MM
MODEL: WNHC-63-3T
power: AC220V 50HZ
driving pressure: 0.4-0.7MPA 5020KGF-8790KGF
Brand: WELLNA
Manufacture: WELLNA
Location: GUANG DONG of China contact: IRIS SU(0086-13416659506) .
Specifications
1.small hydraulic press
2.July high quality portable hydraulic press
3.good service manual hydraulic press
4. hydraulic press
hydraulic press : small hydraulic press hydraulic press 5T manual hydraulic press
Characters of machine press :
- With compressed air as power source, easy to operate,
- There is no noise and electricity consumption unlike the hydraulic system generated in standby to reduce production costs.
- With the advantages of hydro pneumatic technology, works faster with high pressing force.
- It is easy to adjust machines pressing force, only by regulating pressure of air source, you can get your required force.
- C-frame solid structure, easy to operate, convenient to upload and download materials, that ensure efficient work.
- Multifunctional use for indentation, punching, riveting, assembly, cutting, etc
- Safe and humanness design, comfortable operation, suitable for long-term operation.
- Different size working bed is customized, normally 650*550*700mm.
- Easy adaptation to different tool and part heights because of simplistic height adjustment with angular gear.
Specification of machine press :
Model | WNHC-63-3T | WNHC-80-5T | WNHC-125-10T | WNHC-125-15T |
Max Height |
235 |
235 |
230 |
230 |
Cylinder Specifications | Ø63*100*50mm | Ø80*100*50mm | Ø125*100*50mm | Ø125*100*50mm |
Boosting Specifications | Ø125-L25-Q30 | Ø125-L25-Q50 | Ø125-L17-Q120 | Ø125-L25-Q120 |
Power | AC220V,50Hz | AC220V,50Hz | AC220V,50Hz | AC220V,50Hz |
Driving Pressure |
0.4-0.7MPa |
0.4-0.7MPa |
0.4-0.7MPa |
0.4-0.7MPa |
Weight |
180kg |
200kg |
320kg |
320kg |
Driving Pressure | Theoretical output | Theoretical output | Theoretical output | Theoretical output |
0.4MPa |
3100Kgf |
5020Kgf |
8340Kgf |
12265Kgf |
0.5MPa |
3890Kgf |
6280Kgf |
10425Kgf |
15330Kgf |
0.6MPa |
4670Kgf |
7530Kgf |
12510Kgf |
18400Kgf |
0.7Mpa |
5450Kgf |
8790Kgf |
14500Kgf |
21400Kgf |
Operating manual of machine press :
- To start machine by two hand buttons,time relay controls machine's return stroke.
- Connected to power, in the "manual" state,operator can make machine do low force inching rise or inching drop action by pressing inching rise or inching drop buttons,so as to correct moulds.
- In the "automatic" state, machine will start after operator put workpiece on work bed and press switches by two hands.during fast approach stroke, the upper moulds move to workpiece quickly and gently with low-noise, no impact, when upper moulds contact with workpiece machine will build up full power(power stroke) automatically from fast low force approach stroke until set-up time over,then time relay controls moulds returning automatically,so as to insure machine builds up enough pressing force required.
- Speed of Fast approach stroke and returning stroke can be adjusted stepless, so as to meet different working frequency requirement.
- Machine's maintenance system can process inlet compressed air so as to make it gas-water seperated and oil atomization, you can also adjust the pressure of inlet air source stepless, so that machine's output force is adjustable stepless.
- With an emergency returning button, moulds can return immediately anytime.
- There is a power stroke regulating valve, which can adjust pressing force of power stroke while machine's speed is not changed, in this way it can protect moulds and energy-saving.
Attentions of machine press :
- Adopt easy and safe return circuit design,meet safety requirements of press machines, if you need further security protection facilities, please contact us.
- Each machine's output force is theoretical value, practical output force is 85% of heoretical value,when you use our machines please ensure supply stable air source.
- Please take machine's open height into account,please calculate the height of your moulds and workpiece.
- Hydro pneumatic press has oil tank,please fill oil between top and bottom oil line,please use ISO VG 68 anti-wear hydraulic oil. hydraulic oil should be changed every year or 500000 cycles later, if oil is emulsified please change oil.
- Please attention air source treatment's drainage function, if it is ineffective, please change new one.
- When machine does not work for long time please release machine's pressure.
Application of machine press :
1. Bending
2. Punching and connection
3. Riveting
4. Blanking
5. Stretch for forming
6. Stamping numbers and letters
7. Cutting
8. Assembling and alignment
9. Clamping and extrusion
