- High quality WNHB diameter 100 WELLNA hydraulic press machine and pneumatic press machine

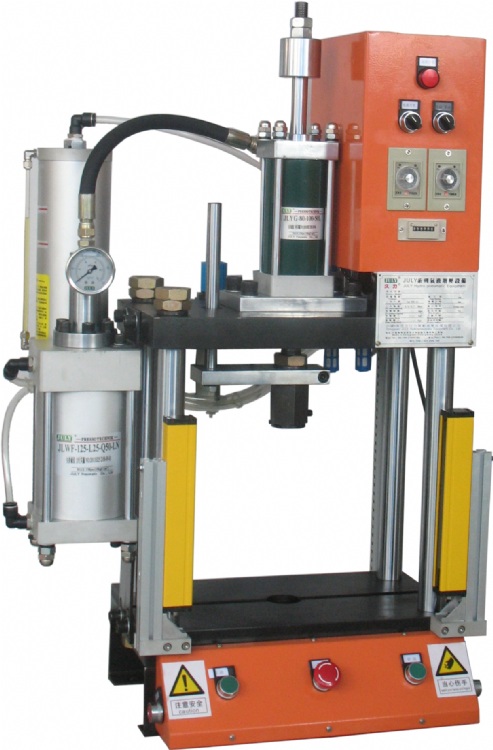

High quality WNHB diameter 100 WELLNA hydraulic press machine and pneumatic press machine
Model: WNHB-100-10E-50L-240-5T-220V
Category: Machine Tools / Metal Forming Machine Tools / Hydraulic Machinery
Characteristics
Condition: New
CNC or Not: Normal
Power Source: Hydraulic
Place of Origin: Guangdong, China (Mainland)
Brand Name:WELLNA
Model Number: WNN-100-10E-50L-240-5T-220V
Voltage: 220V
Weight: 155KG,150KG
Dimension(L*W*H): 610*480*1050MM
Certification: CE
Warranty: one year
After-sales Service Provided: Overseas service center available
height: 260
cylinder: Diameter 80*100*50MM
MODEL: WNN-80-3T
power: AC220V 50HZ
driving pressure: 0.4-0.7MPA 5020KGF-8790KGF
Brand:WELLNA
Manufacture: WELLNA
Location: GUANG DONG of China contact: IRIS SU(0086-13416659506) .
Specifications
Specifications
1.pneumatic press machine
2.high quality small pneumatic press machine
3.good service manual hand press machine
4.manufacture
Machine press : 5T pneumatic press machine small manual press machine hand press riveting machine
Characteristics of four column press:
- With pressed air as the power, simple to operate. hand operated press machine
- Making no noise during standby of the oil hydraulic system, saving the electricity and reducing production cost.
- Cylinder stroke adjustable and customized for special request.
- Easy to adjust the output, the required pressure can be reached by simply adjusting the pneumatic pressure, easy and convenient.
- Safe and human-centered design, comfortable and durable operation.
- Allows adding heating modules and temperature controller, as well as forcing transducer additionally.
- Available working platform: 500*560*610mm
Specification of four column press:
| Model | WNHB-63-3T | WNHB-80-5T | WNHB-125-10T | WNHB-125-15T |
| Max height | 260 | 260 | 260 | 260 |
|
Cylinder specification |
Ø63*100*50mm |
Ø80*100*50mm |
Ø100*125*50mm |
Ø125*100*50mm |
|
Power |
AC220V,50Hz |
AC220V,50Hz |
AC220V,50Hz |
AC220V,50Hz |
|
Driving pressure |
0.4-0.7MPa |
0.4-0.7MPa |
0.4-0.7MPa |
0.4-0.7MPa |
|
Weight |
150kg |
155kg |
165kg |
165kg |
|
Driven pressure |
Theoretical output |
Theoretical output |
Theoretical output |
Theoretical output |
|
0.4MPa |
3100Kgf |
5020Kgf |
8340Kgf |
12265Kgf |
|
0.5MPa |
3890Kgf |
6280Kgf |
10425Kgf |
15330Kgf |
|
0.6MPa |
4670Kgf |
7530Kgf |
12510Kgf |
18400Kgf |
|
0.7MPa |
5450Kgf |
8790Kgf |
14500Kgf |
21400Kgf |
