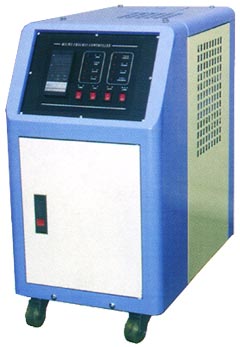

Automatic Temperature Controller
Model: Automatic Temperature Controller
Category: Mold and Die Industry / Peripheral Equipment Mold &Die / Other equipment
Characteristics
Safety Devices:
Non Fuse Breaker of the
Main Power Supply
Overload Alarm of Pump
Overheat Alarm
Phase Reversing Alarm of Motors
Water (Oil) shortage Alarm
Specifications
MODEL UNIT KTC-120 KTC-120S KTC-120-2 KTC-120-3 KTC-150S KTC-200 KTC-200S
TEMP.RANGE °C NORMAL -120°C 50-150 60-200 60-200
FLUID WATER OIL
COOLING METHOD DIRECT COOLING INDIRECT COOLING
HEATING CAPACITY KW 6 9 18 4.5 9
PUMP POWER HP 1 2 3 3/4 1
MAX.PUMP CAPACITY l/min 90 60 280 320 60 90 60
MAX.PUMP PRESSURE kl/cm² 3 6 3.2 3.5 3.5 3 6
POWER 3Ø200- 440V 60/50 HZ
MAX.POWER SUPPLY KW 7 11 20 6 10
TANK CAPACITY 1 4 8 20 10
PROCESS FLUID PIPE inch 1" 11/2 " 3/4" 3/4"
COOLING WATER PIPE inch 1/2" 3/4" 1/2"
DIMENSION (LxWxH) mm 600x340x720 650x360x720 550x340x550 650x360x720
WEIGHT kg 60 58 75 80 50 70 68
