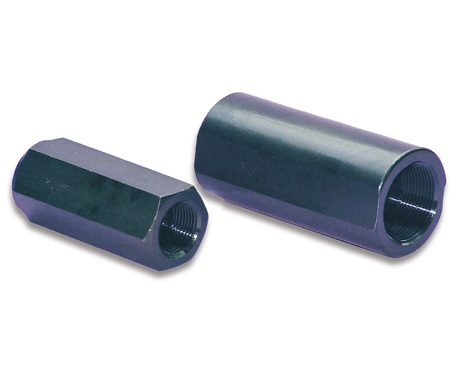

In-line check valve CIT-03/16
Model: CIT-03/16
Category: Machinery Parts and Components / Hydraulic and Pneumatic Components / Hydraulic Valves
Characteristics
High pressure and high precision.
Specifications
MODEL | PT | A(mm) | B(mm) | Flow (L/min) | Max pressure (kg/cm2) |
Weight (kg) |
CIT-03 | 3/8" | 74 | 23 | 40 | 315 | 0.18 |
CIT-04 | 1/2" | 81 | 29 | 60 | 315 | 0.33 |
CIT-06 | 3/4" | 91 | 35 | 100 | 315 | 0.48 |
CIT-08 | 1" | 114 | 46 | 150 | 315 | 1.10 |
CIT-10 | 1-1/4" | 133 | 56 | 200 | 315 | 1.98 |
CIT-12 | 1-1/2" | 134 | 66 | 280 | 315 | 2.78 |
CIT-16 | 2" | 153 | 76.5 | 400 | 315 | 3.64 |
