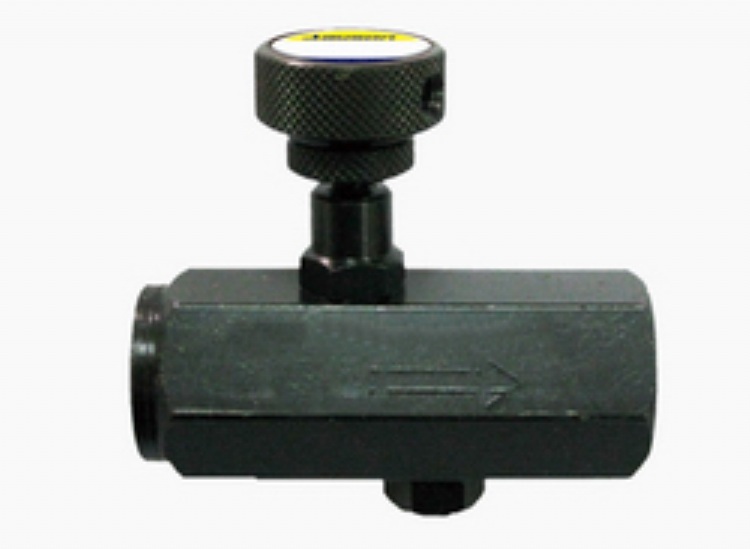

KC-06 Throttle & check valve
Model: KC-06
Category: Machinery Parts and Components / Hydraulic and Pneumatic Components / Hydraulic Valves
Characteristics
High pressure and high precision
Specifications
KC-06 Throttle & check valve

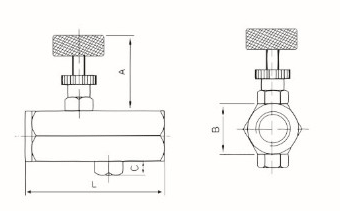

MODEL | PT | A(mm) | B(mm) | C(mm) | L(mm) | FLOW l/min | MATERIAL | MAX PRESSURE kgf/cm2 | WEIGHT kg |
KC-02 | 1/4" | 40 | 23 | 7 | 62 | 12 | steel | 12 | 0.24 |
KC-03 | 3/8" | 38 | 26 | 7 | 70 | 20 | steel | 20 | 0.30 |
KC-04 | 1/2" | 43 | 32 | 10 | 81 | 30 | steel | 30 | 0.50 |
KC-06 | 3/4" | 47 | 41 | 12 | 92 | 48 | steel | 48 | 0.92 |
KC-02N | 1/4" | 40 | 23 | 62 | 12 | steel | 12 | 0.24 | |
KC-03N | 3/8" | 38 | 26 | 70 | 20 | steel | 20 | 0.30 |
