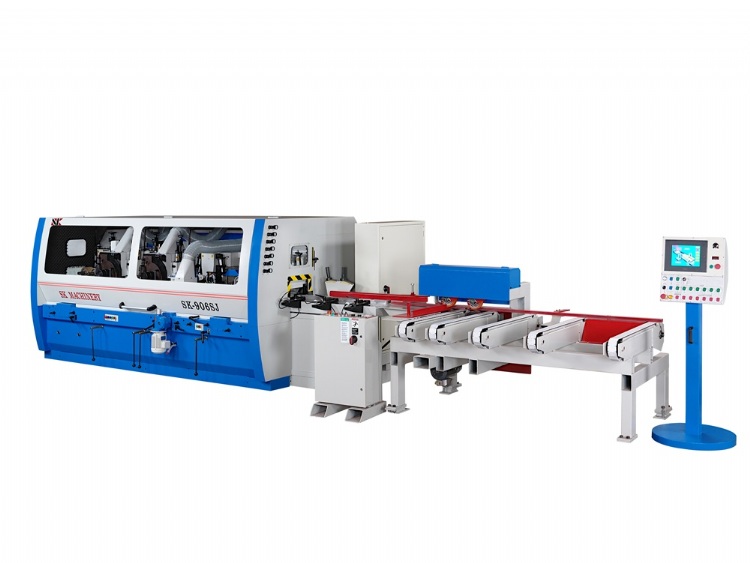

SK Controlmate Moulder
Model: SK-906SJ
Category: Woodworking Machinery Industry / Planing & Moulding Machinery / Four Side Planer
Characteristics
SK Controlmate Moulder is fully auto profile center:
For the high demand and request of future production, latest developed high end technology on the colorful screen. This is a machine for just-in-time production and labor cost saving moulder. The SK Controlmate can automatically position cutterheads on each spindle without wasting any moment of loosing money.
Specifications
Specification
Model |
Controlmate 6 |
Controlmate 7 |
Controlmate 8 |
Working height min./max. |
10/130mm |
10/130mm |
10/130mm |
Working width min./max. |
20/230mm |
20/230mm |
20/230mm |
No. of spindle |
6 |
7 |
8 |
Spindle RPM |
6000 |
6000 |
6000 |
Jointer on 1st bottom spindle |
Straight |
Straight |
Straight |
Jointer on 2 vertical spindles |
Straight/Profile |
Straight/Profile |
Straight/Profile
|
Jointer on top an last bottom spindle |
Straight/Profile |
Straight/Profile |
Straight/Profile |
CNC-controlled spindle positioning |
200 memory |
200 memory |
200 memory |
Max. tool diameter horizontal 1st bottom |
200mm |
200mm |
200mm
|
Max. tool diameter top horizontal |
250mm |
250mm |
250mm |
Max. tool diameter 2nd bottom horizontal |
250mm |
250mm |
250mm |
Max. tool diameter right and left vertical |
250mm |
250mm |
250mm |
Frequency-controlled feed speed |
Up to 150/200 m/min |
Up to 150/200 m/min |
Up to 150/200 m/min |
Max. motor HP on 1st bottom |
10-50HP |
10-50HP |
10-50HP |
Max. motor HP on horizontal |
10-50HP |
10-50HP |
10-50HP |
Max. motor HP on the other bottom |
10-50HP |
10-50HP |
10-50HP |
