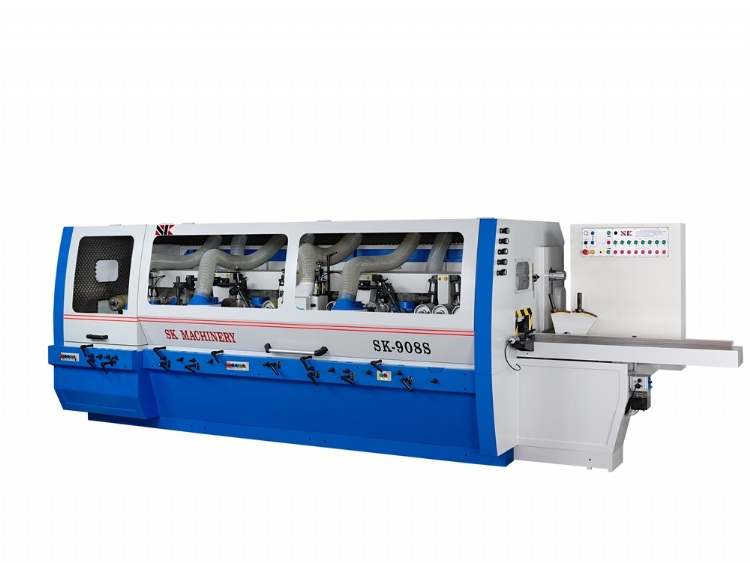

SK Veneermate Moulder
Model: SK-908S
Category: Woodworking Machinery Industry / Planing & Moulding Machinery / Four Side Planer
Characteristics
For the more demands and requests of veneer/lamella production, the best quality thin veneer with high speed productivity is used for engineered flooring, doors, blinds, slats, shutters, musical instruments and much more. This machine with the high quality thin kerf saw blades combined with optional cooling system which prolongs the service life and provides a higher feed speed has several times higher capacities than the other machines. The optional scoring saws are available to reduce grain chip-out and to increase the feed speed to become a heavy-duty cleaving saw. It is also combined with 4 head planer to make the material into a perfect condition before sawing into veneer/lamella
Specifications
Specification
Model |
Veneermate 5 |
Veneermate 6 |
Veneermate 8 |
Working height min./max. |
10/100mm |
10/100mm |
10/100mm |
Working width min./max. |
60/180mm |
60/180mm |
60/180mm |
No. of spindle |
5 |
6 |
8 |
Cutterhead Spindle RPM |
6000 |
6000 |
6000 |
Scoring Saw Spindle RPM |
4000 |
4000 |
4000 |
Main Saw Spindle RPM |
4000 |
4000 |
4000
|
Max. tool diameter horizontal 1st bottom |
150mm |
150mm |
150mm
|
Max. cutterhead diameter on the other spindle |
200m |
200mm |
200mm |
Variable feed speed min/max |
4/24m/min |
4/24m/min |
4/24m/min |
HP on each cutterhead |
7.5HP/10HP |
7.5HP/10HP |
7.5HP/10HP |
HP on scoring saw |
15HP |
15HP |
15HP |
HP on the main saw |
25HP |
25HP |
25HP |
