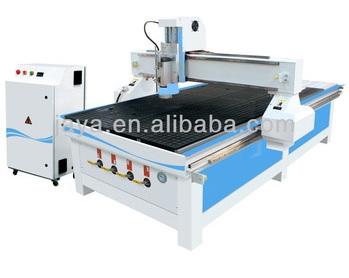

CNC Router
Model: CR1325
Category: Woodworking Machinery Industry / Others / Other Woodworking Machines
Characteristics
Specifications
One universal type of cost-effective wood CNC Router, with main configuration adopting products top brans in China and Taiwan.
APPLICATIONS
1. Furniture: Ideally suitable for processing cabinet door, wooden door, solid wood furniture, Panel wood furniture, windows, tables and chairs and ect.
2. Other wooden products: stereo box, computer desk, musical instruments, ect .
3. Well -suited for processing panel, insulating materials, plastics, epoxy resin, carbon mixed compound, ect.
4. Decoration: Acrylic, PVC, density board, artificial stone, organic glass, soft metal like aluminum and copper, Ect .
Specifications
No. |
Function |
Parameters |
1 |
Working area |
1280*2480*200 |
2 |
Table size |
1500*3050mm |
3 |
Table structure |
T-slot Table top |
4 |
Transmission |
X/Y rack and pinion; Z lead screw |
5 |
Speed |
Max. idle traveling speed: 30000 mm/min |
6 |
Max. operating speed: 15000 mm/min |
|
7 |
Spindle Power |
Changsheng 3kw water cooling spindle |
8 |
Spindle Speed |
0—24000r/min |
9 |
Driving system |
Yako2608 |
10 |
Working Voltage |
380V/3PH/50HZ |
11 |
Operating system |
DSP ( Option: NC Studio) |
12 |
Net weight |
1200kg |
13 |
Gross weight |
1350kg |
FEATURES
1. High speed and quick reflection operating method DSP controlling system; adopting breakpoint memory to guarantee continuous processing when accident (tool broken) occurs or the other day.
2. Chinese famous brand 3.0kw water cooling spindle with high rotating speed and cutting forces; Italy HSD Spindle is also available.
3. Changzhou Fuxing stepper motor and Yako driver; high response speed; big torque; can fully operate under condition of high capacity( 3 times’ rated capacity); good dynamic tracking and stability.
4. 3.7 KW Fuling inverter; high anti jamming capability; big torque output to guarantee spindle motor running stably and safely with high speed. Optional: Taiwan Delt Inverter.
5. Taiwan imported HIWIN four row ball screw square guide rail and self lubrication block. Equal engraving force in each direction to guarantee mechanical accuracy and strength.
6 Japan OMRON limit switch ; French Schneider AC connector; Taiwan imported TBI high accuracy ball screw
7. Heavy Steel tube welded machine body, to make sure the machine’s high stability, precision and efficiency working. Gantry side panel fixed with 6 screws, to make sure the gantry’s high supporting power.
8. Vacuum table with T-slot, can fix the work piece by suction and clamps. Attractive and durable, easier to operation, also can save your time.
9 .All configurations can make as customer's request.
