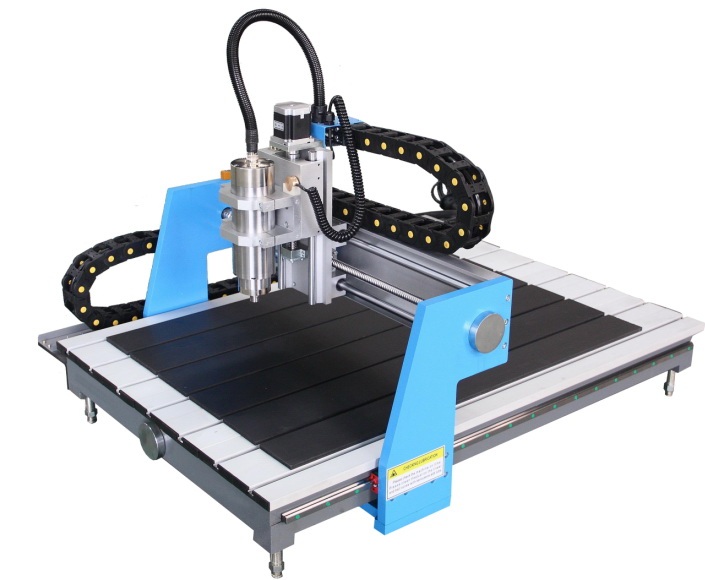

CNC Advertising Machine
Model: CR4040
Category: Woodworking Machinery Industry / Bonding/ Pressing/ Forming Machinery / Automatic Edge Banding Machine
Characteristics
Features
•Working area: 400mm*400mm*120mm, PVC table ( with Aluminum profile)
•1.5 kw self-cooling spindle made in China
•Stepper motor system
•Linear Rail: HIWIN Linear Guide way made in Taiwan DSP controller system, Tool sensor
•One set of advertising tools
•Inverter: Taiwanese Delta Inverter
•Electronic Parts: German Schneider Electronic Spare Parts
•Switch: Japanese OMRON Switch
•Voltage: 220V/1PH/ 60HZ
•Package: plywood case
Specifications
CNC Advertising Machine CR4040
Item |
CR4040 |
Working area |
400*400*100 mm |
Table Size |
520mm x 660mm |
Transmission |
ball screw |
Table structure |
T-Slot Extrusion PVC |
Spindle |
1.5KW |
Spindle speed |
24000 RPM |
Speed |
MAX traveling speed :6000mm/min |
MAX working speed :5000mm/min |
|
Driver and Motors |
Stepper motor |
Working voltage |
AC220V/1PH/60Hz |
Operating system |
DSP (Option : NCSTUDIO) |
N/G weight |
100/150 KGS |
Package size |
1000*1000*100mm |
Optional |
600*900 working size is available |
Features
- Working area: 400mm*400mm*120mm, PVC table ( with Aluminum profile)
- 1.5 kw self-cooling spindle made in China
- Stepper motor system
- Linear Rail: HIWIN Linear Guide way made in Taiwan DSP controller system, Tool sensor
- One set of advertising tools
- Inverter: Taiwanese Delta Inverter
- Electronic Parts: German Schneider Electronic Spare Parts
- Switch: Japanese OMRON Switch
- Voltage: 220V/1PH/ 60HZ
- Package: plywood case
Applications
- Advertising: Advertising signs, logo making, acrylic cutting, plastic molding, engraving on a variety of advertising decorative products materials
- Other industry: Emboss, widely used in craft gifts industry.
- 2D, 3D CAD /CAM Machining Capabilities, perfect for Machinist, Sign marker Artist, Engraver.
Machine details :
1 working area
2. 1.5KW spinlde
3. Stepper motor
4 Delta Inverter
4.HIWIN Linear Guide
5.Ball screw transmission
WorkING Samples:
