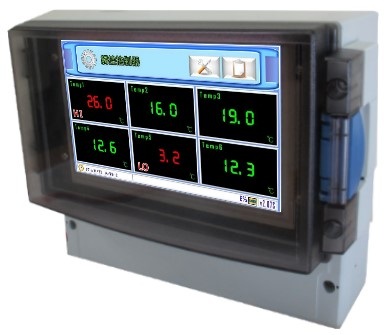

Industrial Alarm System

Model: JNC- A6D8- Controller

Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Online Inquiry

Characteristics

1. English and Chinese touch interface
2. Set deadband and delay time
3. Set tag name / range / unit / offset / gain / HH / H / LL / L alarm
4. Alarm content with tag name, value, state, occur time
5. With latest 100 event log
6. With reset function
7. Six channel control Relay can assign any channel and state (HH, H, L, LL)
8. Analog Input charged 24VDC that supply to sensor
9. Input can set to DIP Switch 4-20mA / 0-5V / DI

JNC Product Web Address：http://www.jnc-tec.com.tw/Main/List_Product.aspx?ProductType_ID=45

Specifications

Power	24VDC
Environment	Operating temperature	-10℃ ~ 60℃	(6℉~148℉)
	Storage temperature	-20℃ ~ 70℃	(-4℉~158℉)
	Relativity humidity	0~80 % RH
Alarm Output	Output channel	6 channel, can set 4 level of alarm (H / HH / L / LL)
	2 common alarm	With reset function
	Contact capacity	1 A / 24 VDC ※Control Equipment (EX: Solenoid Valve, Motor) Please increase Relay
Communication	Interface	RS-485
	Protocol	Modbus RTU
Signal	Input channel	6 channels (with 24VDC/ 500mA Each)
	Input signal	4 – 20mA / 0-5V / DI (DIP Switch)
Display	7”TFT Full-color touch screen
	Resolution	800 x 480
System	Power consumption	8W, max.12W
	Accuracy	± 0.1% full scale
	Sampling time	10 times/sec
	Warranty	One year
Physical	Dimension (mm)	235 x 185 x 119 (W× H× D)
	Weight	1.5Kg
	Mounting	Wall mount
Case	Material	ABS
	Ingress Protection	IP 65
