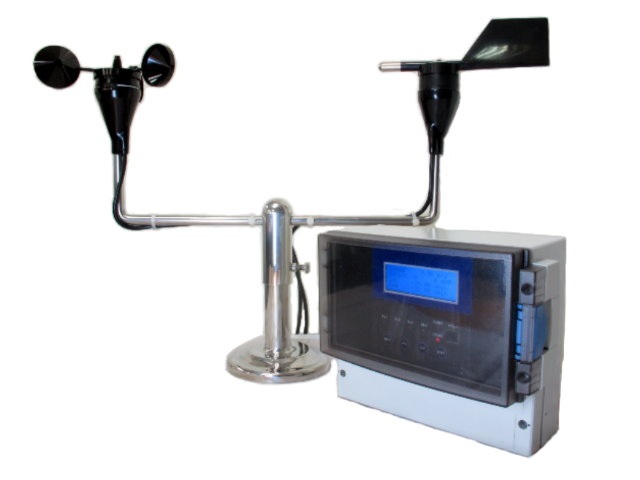

Anemometer & Wind Direction
Model: JNC – WS 01 / JNC-WS 02
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
1. Every channel can set alarm for H and HH
2. Provide two common alarms (COM 1 : first relay of alarm; COM 2 : second relay of alarm has reset function)
3. Provide instant wind speed, average wind speed for 2 min and 10 min.
4. Wind speed with six units. (m/s, km/h, mph, knot/s, B)
5. Offsets / gains calibrated function
6. Alarm delay time can be set from 0 to 255 sec
7. Deadband of control is settable. (0 ~ 10% Full Scale)
8. Settable calibrated mode
9. Controller parameter can be set directly by built-in USB port
10. Provide RS-485 Modbus RTU output interface
11.Can detect wind speed, wind direction and wind pressure
12.Detect eight direction.(W←/E→/S↓/N↑/SW↙/SE↘/NW↖/NE↗)
13.Software for controlling and setting parameter (Option)
JNC Product Web Address：http://www.jnc-tec.com.tw/MainE/List_Product.aspx?ProductType_ID=11
Specifications
|
Model |
|
JNC-WS 01(Panel Mount) |
JNC-WS 02(Wall Mount) |
||
|
Power |
24V DC，max. current0.2A(200mA) |
||||
|
Environmental |
Operating temperature |
0℃ ~ 50℃ (32℉~122℉ ) |
|||
|
Storage temperature |
-20℃ ~ 70℃ (-4℉~158℉ ) |
||||
|
Range |
Wind speed |
(m/s) |
：0 ~ 95.9 |
||
|
(km/h) |
：0 ~ 345.24 |
||||
|
(mph) |
：0 ~ 214.81 |
||||
|
(knot) |
：0 ~ 186.04 |
||||
|
(ft/s) |
：0 ~ 314.552 |
||||
|
(B) |
：0 ~ 15 |
||||
|
Wind direction |
360°(0 ~ 359°) |
||||
|
Alarm Output |
Relay control point |
Four point, can two levels of alarm |
|||
|
Two common alarms |
COM1: alarm for first level |
||||
|
COM2:alam for second level, have reset function |
|||||
|
Contact capacity |
1 A / 125 VAC or 1 A / 250 VAC |
||||
|
Communication |
Interface |
RS-485 |
|||
|
Protocol |
Modbus RTU |
||||
|
Input Signal (Optional) |
Input channel |
2 channels |
|||
|
Current signal |
4-20mA |
||||
|
Display |
Backlit LCDs |
20 column × 4 line |
|||
|
LED indicators |
Alarm：AL1 / AL2 / AL3 / AL4 |
||||
|
Common alarm：COM1 / COM2 |
|||||
|
Range |
-999.9 ∼ 9999.9 |
||||
|
Button |
RST：can close alarm status of COM2 |
||||
|
Up/down (for choosing) |
|||||
|
ENT：enter |
|||||
|
System |
Power consumption |
Less than 5W |
|||
|
Accuracy |
±0.1% |
||||
|
Sampling time |
10 times/sec |
||||
|
Warranty |
One year |
||||
|
Physical |
Dimension (mm) |
110 × 110 × 167 (W x H x D) |
235 x 185 x 119 (W x H x D) |
||
|
Mounting Size |
92mm × 92mm |
- |
|||
|
Weight |
1 Kg |
1.3Kg |
|||
|
Mounting |
Panel mount |
Wall mount |
|||
|
Case |
Material |
Iron |
ABS |
||
|
Ingress Protection |
- |
IP 65 |
|||
|
Authentication |
CE / FCC / RoHS |
||||
