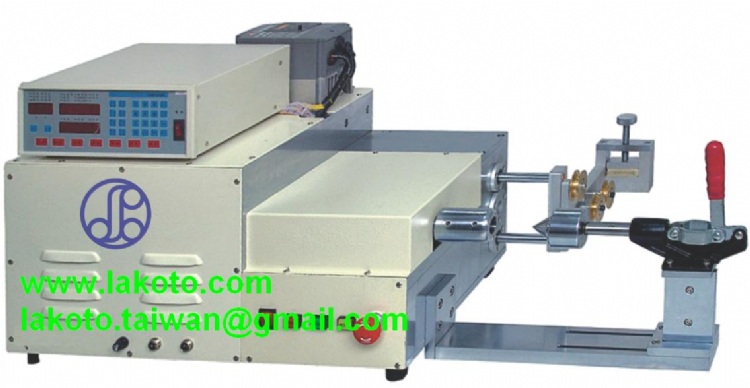

Auto High Torsion Coil Winding Machine
Model: LA-606E
Category: Machinery Parts and Components / Metal Products / Steel Wire Ropes, Steel Wires
Characteristics
Features：
1、1HP AC motor, full tension.
2、Equipped with tensioner device offering stable wire guiding and tension.
3、Suitable for UPS coils, large coils.
4、Adjustables distance for the tailstock. The bobbin fixture protects the bobbin
not out of shape.
5、Automatic wire travels function.
Specification：
MODEL LA-606E
Power Single phase AC220V/50Hz
Axis(Main) motor 1HP AC motor
R.P.M. 200-1000 R.P.M.
Wire size 0.5-5 mm
Spread range 150 mm
Winding dia 250 mm
Weight 80 kg
Dimensions 780W*980L*240H mm
Optional equipment Tailstock
