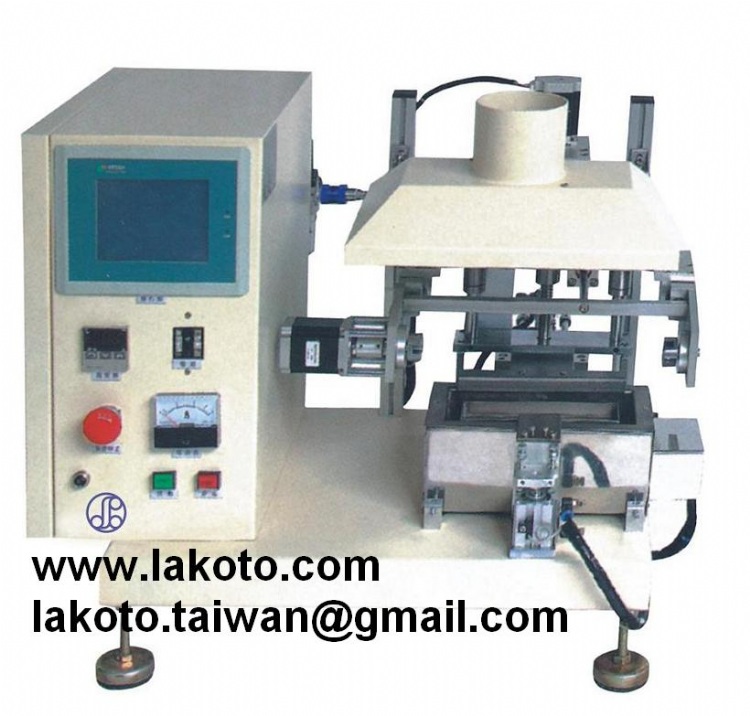

Turnover-Forwarder Type Soldering Machine
Model: LA-880
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Assembly Machines
Characteristics
FeaturesG
1. Equip with the titanium and lead free soldering pot.
2. LCD system, High tech LCD system, English display.
3. Using NC fixture.
4. Automatic error detective and report.
5. With the teaching program, it is easy for operation.
6. Adjustable turnover angle for 360 X
7. Design soldering for SMD coils, soldering spindle can set for desired angles.
8. Automatic clean tin dross.
9. Programmable mode available to overcome manual and multi-angle soldering
problems and convenience to control the coil soldering quality.
10. Soldering spindle action for turnover and moving forwarder, easy to drop out
the tin dross (on the wire) for while soldering.
SpecificationG
MODEL LA-880
Power Single phase AC220V / 50 Hz
Action NC two spindles Forward (cylinder)
Temperature range 25-600 J
Soldering pot dimension Heater 1400W / 220*100(300*100) mm
Air supply 5 kgf/cm2
Weight 84 kg
Dimensions 800W * 400L * 600H mm
