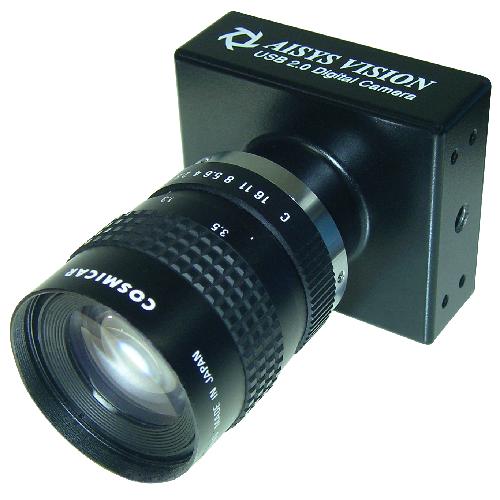

ALTAIR U Series USB2.0 Industrial Camera
Model: ALTAIR U Series
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
● Fully bus powered (i.e. No external power is required )
● USB 2.0 interface、Plug-and-Play
● Industrial high performance device driver
● 1 Input / 1 Output TTL type digital I/O lines ● 2 channels of voltage output (0.0V~5.0V、quantized in 256 levels) which makes users programmablly control illumination device easily
● Free and powerful SDK OVK-Lite help users to acquire and show image even in 1 minute
● Free and powerful FirstGlimpseAltairU utility help users to measure geometric shape precisely and easily
Specifications
● Greylevel and color from 300KPix to 5.0MPix
● Progressive scan readout mode
● Internal synchronization and external synchronization
● Built-in irregular pixel correcting circuit
● Real time horizontal and vertical flip is support
● WOI (Window of Interest) is support for flexible resolution output
● Subsampling and binning (up to 2X) for both horizontal and vertical direction
