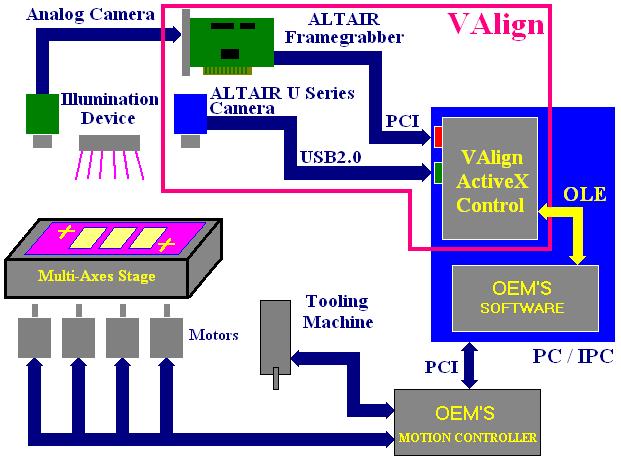

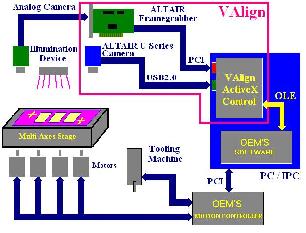

VAlign Vision Alignment System
Model: VAlign
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
● Multiple Languages：English / Traditional Chinese / Simplified Chinese
● Digital IO：4 In / 4 Out (Framegrabber); 1 In / 1 Out (Camera)
● Analog IO：2 channels ranging from 0.0V~5.0V voltage output which helps users to control intensity of illumination device by software easily (Camera version only)
● Focus Ratio Estimation：Built-in focus ratio estimation engine; with the help of focus ratio (will reach local maximum when in focus), users can control motion controller to achieve so-called auto-focus
● Online Calibration：Through online calibration users can estimate the relation between pixel and real dimension without efforts
● Parameters management property page：Well-designed parameters management property page help users to configure VAlign without any programming codes and makes users integrate system easily (Show as the above)
● Reference Applications：PCB Dicer、BGA Carrier Dicer、LED Dicer、PCB Laser Marker、Laser Cutter、Laser Driller...etc
● Greylevel / Full Color：Support both greylevel and full color cameras
● Support Framegrabber / USB2.0 Industrial Camera：Two types of image acquisition hardwares are available for customers to gain the most flexibility and low down the cost
● Professional / Advanced / Lite versions：Three versions of VAlign in functionality are available for customers to gain the best C/P ratio
Specifications
● All in one vision alignment kit for industrial vision alignment application
● Thanks to ActiveX component model, VAlign can be integrated into PC-based system with even no efforts and prior knowledge in vision ; in addition, VAlign support RS232 interface to communicate with external system
● Multiple Target Templates：Up to 16 different target template can be built to perform the best matching among the 16 templates
● High Performance、High Precision：High performance and high precision sub-pixel (up to 1/50 pixel) alignment algorithm
● Arbitrary Target Shape：Adaptive teaching producedure, target of arbitrary shape can be located precisely through a flexible teaching procedure
● Multiple Development Platforms：VAlign provide excellent support for WINDOWS and supported development platforms include : Visual Basic、Visual C++、C++ Builder、Delphi
