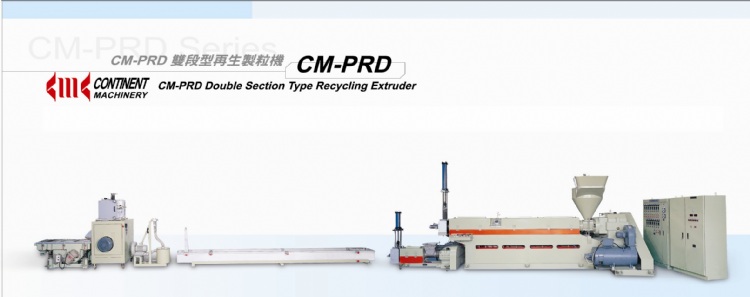

CM-PRD Double-Section Type Recycling Extruder
Model: CM-PRD120 Double-Section Type Recycling Extruder
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Extruders
Characteristics
■CM-PRD main feature:
1. Automatic hydraulic screen changer takes out dirties form pellets.
2. Control panel sets beside the main extruder for easy operation.
3. Strong forced feeder creates suitable strength to force crushing film feed into the
extruder line.
4. Recycling shape of material: Film(shopping bag)Lumps and Scrap.
5. The following materials are suitable for recycling:
PP/HDPE/LDPE/ABS/PS/PC/POM/PA/PMMA/PBT(Not include PVC)
Specifications
機型介紹Description |
||||
第一段押出機 First Section Extruder |
||||
Model Item |
CM-PRD85 |
CM-PRD100 |
CM-PRD120 |
CM-PRD150 |
Screw Diameter(mm) |
85 |
100 |
120 |
150 |
L/D of Screw |
28-32 |
28-32 |
28-32 |
28-32 |
第二段押出機 Second Section Extruder |
||||
Screw Diameter(mm) |
95 |
105 |
125 |
155 |
L/D of Screw |
8 |
8 |
8 |
8 |
Output*(kg/hr) |
80-160 |
100-260 |
180-350 |
250-450 |
押出機產量依原料物性而定 Output range depends on material feature |
