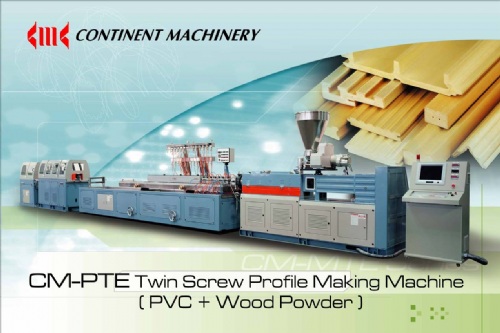

CM-PTE Parallel Type Twin Screws Extrduer Profile Making Machine
Model: CM-PTE68콦Ͳ]
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PVC Profile Extrusion Machines
Characteristics
Counter Rotating Twin Screw achieve excellent kneading
Screw and Barrel are special treatment for corrosive resistant
Vacuum venting removes the moisture from pellets
PID control system for accurate temperature setting values
Raw material: PVC soft/rigid raw material
Products: door plank, window, cable, other profiles
Specifications
Model |
Driving motor(HP) |
Screw Diamter(mm) |
L/D of Screw | Output*(kg/hr) |
PTE 68 | 30-40 | 68 | 22-26 | 60-120 |
PTE 77 | 50-75 | 77 | 22-26 | 150-220 |
PTE 95 | 75-100 | 95 | 22-26 | 200-350 |
